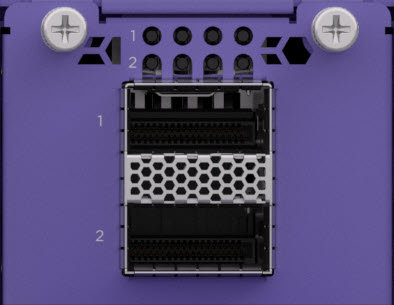

5720-VIM-2CE Versatile Interface Module

The 5720-VIM-2CE versatile interface module provides two 100GbE QSFP28, MACsec capable ports. Data rates of 10/25/40Gb are supported through port partitioning.

For information about the supported optical modules, refer to the most recent version of the Extreme Optics website.

Table 1. Port Numbers for Ports on the 5720-VIM-2CE Module
Switch Engine			Fabric Engine
24MW and 24 MXW models	1x100G (default) or 1x40G	27, 28	VIM slot number = 2 Interface names = 2/1-2/2
24MW and 24 MXW models	4x10G or 4x25G	27:1, 27:2, 27:3, 27:4; 28:1, 28:2, 28:3, 28:4
48MW and 48 MXW models	1x100G (default) or 1x40G	51, 52
48MW and 48 MXW models	4x10G or 4x25G	51:1, 51:2, 51:3, 51:4; 52:1, 52:2, 52:3, 52:4
