5720 Series switches support the XN-SSD-002-120 solid-state drive (SSD).
Note
Only the The 5720-24MXW and 5720-48MXW switches support SSD modules.
You need the following tools and materials to install an SSD module:
ESD-preventive wrist strap
#2 Phillips head screwdriver
Warning
To prevent damage to the switch or SSD module, the switch must be powered OFF when removing or installing SSD modules. SSD modules are not hot- swappable.
Remove an SSD
Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point on the rack.
Ensure that the switch is completely powered down.
Remove the screws that secure the SSD module in the SSD slot in the rear of the switch using the #2 Phillips head screwdriver.

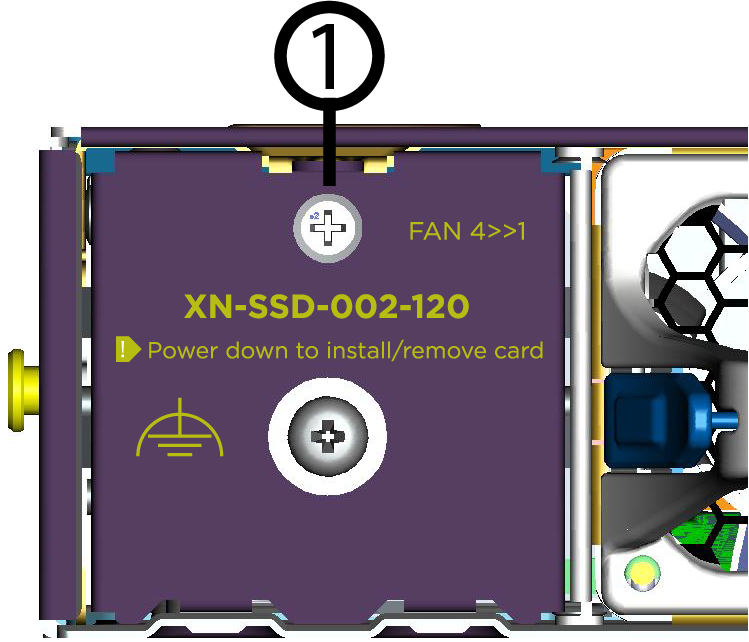

SSD Module Inserted in Slot
1 = SSD blank retaining screw location
Slide the SSD module out of the SSD slot and set it aside.
Replace an SSD
Attach the ESD wrist strap to your wrist and connect the metal end to an appropriate ground point on the rack.
Ensure that the switch is completely powered down.
Remove the rear panel SSD module blank (if necessary) by removing the screws that hold the SSD module blank over the SSD module slot, using the #2 Phillips head screwdriver.

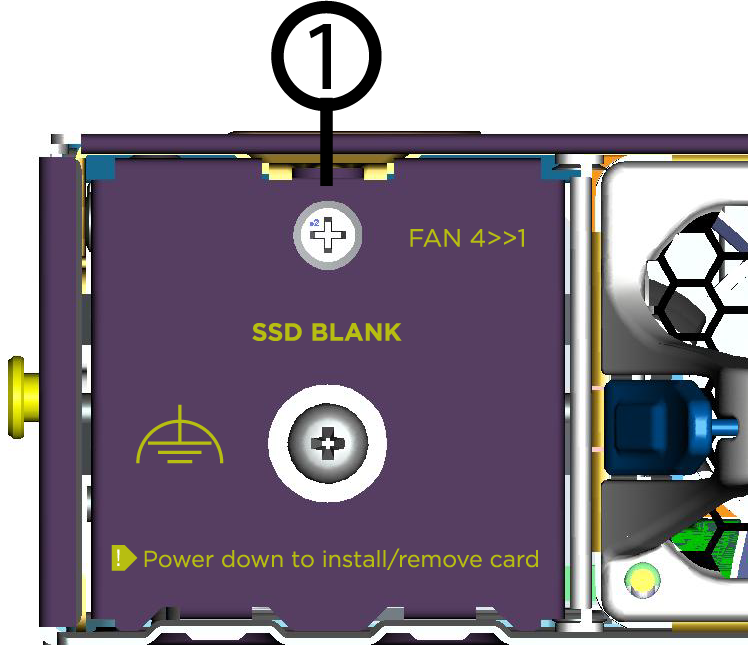

SSD Rear Panel Blank
1 = SSD blank retaining screw location
Remove the new SSD module from its packaging.
Install the SSD module in the switch:
Carefully slide the SSD module into the slot on the rear panel until it is firmly in place.
