VSP4900-12MXU-12XE Switch Features

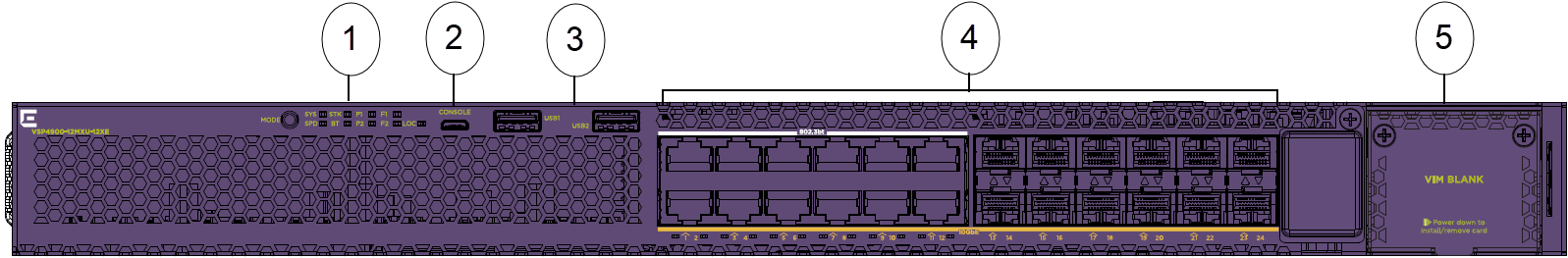

The front panel of the ExtremeSwitching VSP4900-12MXU-12XE switch includes:

• 1 = Mode Button and System LEDs
• 2 = USB Micro-B management port
• 3 = 2 x USB Type-A ports
• 4 = 12 x 100Mb/1/2.5/5/10Gb ports with 802.1bt Type 3 PoE (60W)
• 12 x 1G/10Gb SFP+ LRM and MACsec capable ports
• 5 = VIM slot (unpopulated)

VSP4900-12MXU-12XE Switch Front Panel

The rear panel of the ExtremeSwitching VSP4900 switch includes:

• 1 = Grounding lug
• 2 = RJ45 console and management ports
• 3 = SSD slot (unpopulated)
• 4 = 3 x Fan modules
• 5 = 2 x Power supplies

VSP4900-12MXU-12XE Switch Rear Panel
