VSP4900-24XE Switch Features

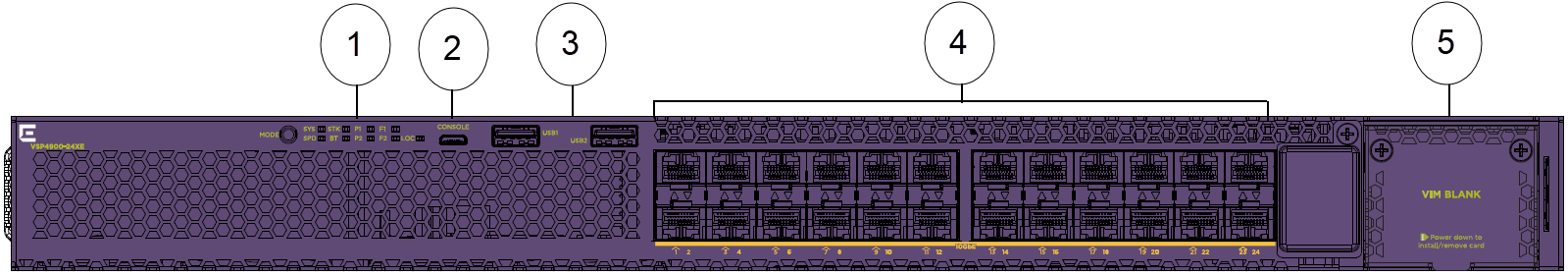

The front panel of the ExtremeSwitching VSP4900-24XE switch includes:

• 1 = Mode Button and System LEDs
• 2 = USB Micro-B management port
• 3 = 2 x USB Type-A ports
• 4 = 24 x 1/10Gb SFP+ LRM and MACsec capable ports
• 5 = VIM slot (unpopulated)

VSP4900-24XE Switch Front Panel

The rear panel of the ExtremeSwitching VSP4900 switch includes:

• 1 = Grounding lug
• 2 = RJ45 console and management ports
• 3 = SSD slot (unpopulated)
• 4 = 3 x Fan modules
• 5 = 2 x Power supplies

VSP 4900 Switch Rear Panel
