Non-standard Ceiling or Wall

The access point can be installed on a nonstandard ceiling grid using the following accessories:
Order part numberDescription
AH-ACC-BKT-AX-TB
Note: Only this bracket is included with the access point
Mounting bracket for 15/16 in. ceiling grid
Click to expand in new window
Circular plastic bracket with two metal hinges for 15/16 in. ceiling installation.
AH-ACC-BKT-AX-ILMounting bracket for 9/16 in. wide T-bar with protrusion, 9/16 in. ceilings, and walls
Click to expand in new window
Circular plastic bracket with two metal hinges on either side. The bracket has an image of a 9/16 in ceiling grid printed on it.
AH-ACC-BKT-AX-SLMounting bracket for 1/8 in. and 1/4 in. ceiling grids with a bottom opening
Click to expand in new window
Circular plastic bracket with two metal hinges on either side. The bracket has an image of a 1/4 in ceiling grid printed on it.
ACC-BKT-AX-JBJunction box or wall mounting for indoor access points
Click to expand in new window

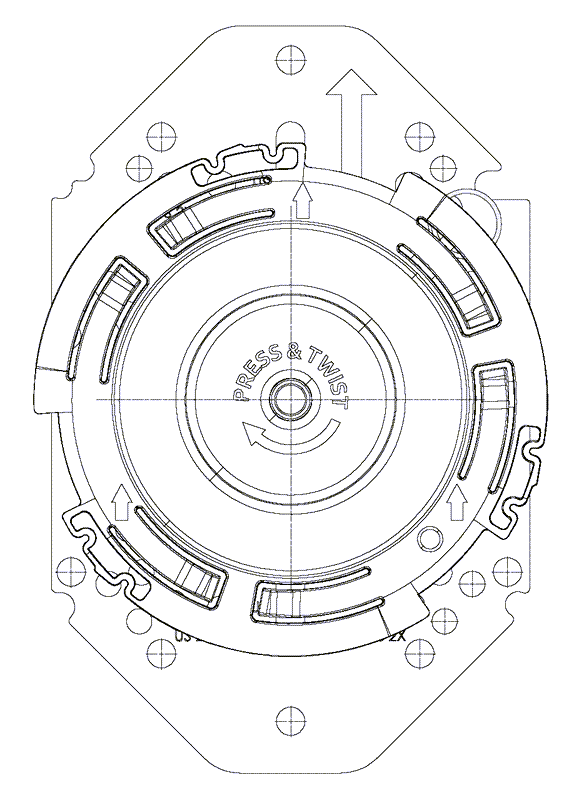

Metal wall part in the background and a circular plastic part in the foreground.
ACC-BKT-AX-BEAMBeam mounting for indoor access points
Click to expand in new window
Plastic circular bracket with metal beam clip attached to one side of it.
AH-ACC-BKT-AX-WLMounting bracket for direct-to-wall installations
Click to expand in new window
Plastic circular bracket with a center pointer to hold the access point in place.
AH-ACC-BKT-916-KIT9/16 in. ceiling mount brackets for non-flat and protruded ceiling tiles. Use with AH-ACC-BKT-AX-TB
Click to expand in new window
Two -916-KIT bracket parts
ACC-BKT-TB-NFAdapter bracket for use with AH-ACC-BKT-TB with 15/16 in. wide T-bars on non-flat or protruded ceiling tiles
Click to expand in new window
ACC-BKT-TB-NF metal bracket parts
ACC-BKT-AX-WNGADAPTAdapter bracket for use with cloud access point that has an existing WiNG mounting plate (#37201)
Click to expand in new window
ACC-BKT-AX-WNGADAPT adapter bracket

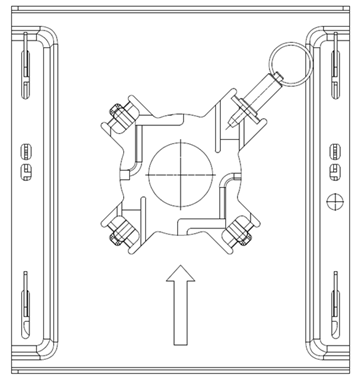

AX-BKT-AX-WNGADAPT bracket
Click to expand in new window

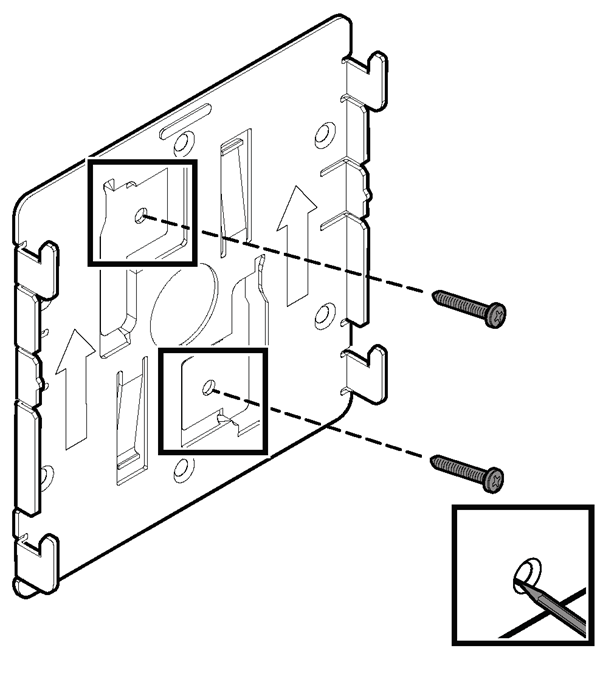

WiNG metal bracket (#37201)
Metal bracket with four feet on each edge of the bracket pointing up
Important

Important

The default bracket for wall installation is the ACC-BKT-AX-JB bracket.
Note

Note

Order the -JB bracket for new wall installations. The AH-ACC-BKT-AX-WL bracket is for users who already have the -WL brackets.
Note

Note

For detailed nonstandard ceiling grid installation or wall installation instructions, refer to the Wi-Fi 6 802.11ax Access Points Accessories Guide.
