Radiation Patterns

Antenna radiation patterns are an important tool when you install your access point. Use this information to optimize your coverage, to reduce interference from other devices, and to ensure you comply with government regulations.

BLE Radio 1 Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020X BLE radio 1.

Click to expand in new window

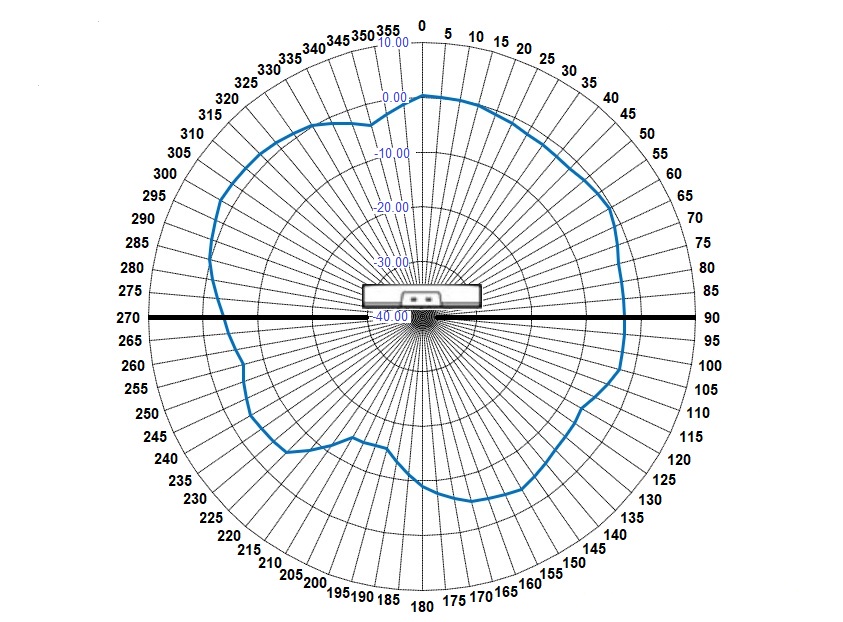

AP4020X BLE Radio 1 - Vertical Radiation Pattern
AP4020X BLE Radio 1 vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

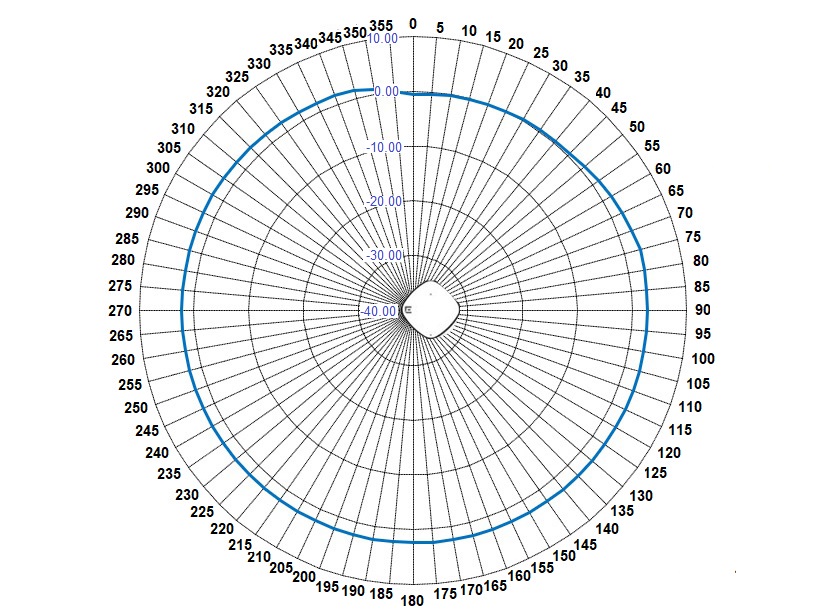

AP4020X BLE Radio 1 - Horizontal Radiation Pattern
AP4020X BLE Radio 1 horizontal radiation pattern with an AP in the middle of the diagram

Sensor Radiation Patterns

The following diagrams illustrate the radiation patterns for the AP4020X sensor.

Click to expand in new window

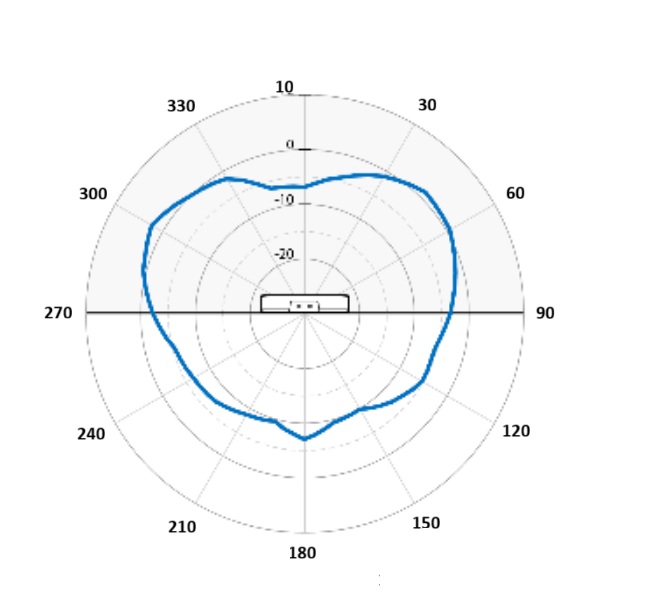

AP4020X 2.4 GHz Sensor - Vertical Radiation Pattern
AP4020X 2.4 GHz sensor vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

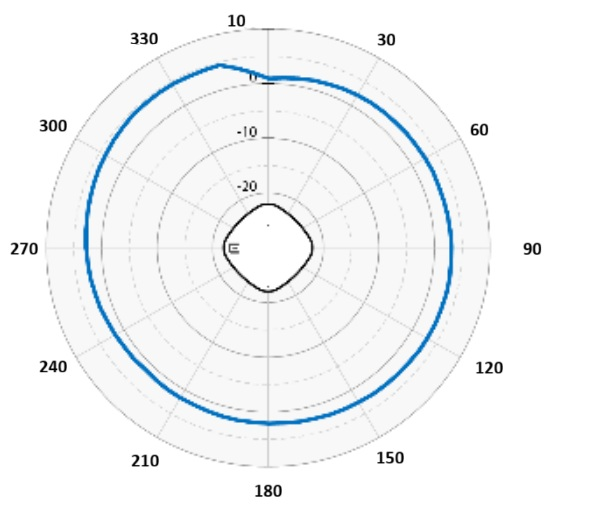

AP4020X 2.4 GHz Sensor - Horizontal Radiation Pattern
AP4020X 2.4 GHz sensor horizontal radiation pattern with an AP in the middle of the diagram
Click to expand in new window

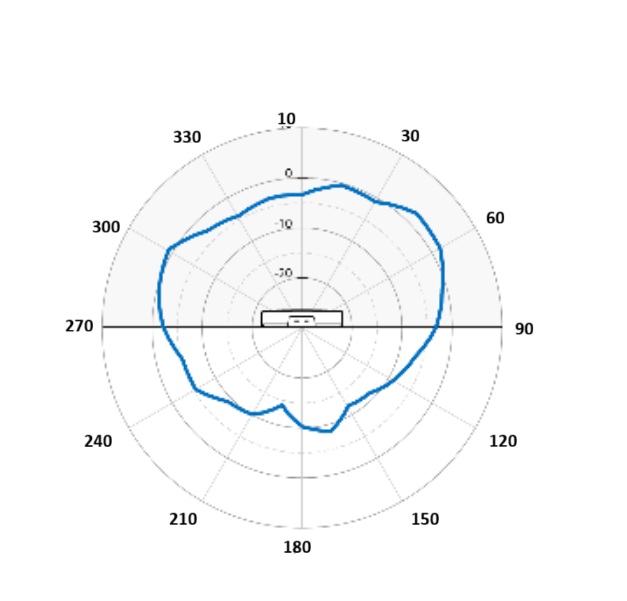

AP4020X 5 GHz Sensor - Vertical Radiation Pattern
AP4020X 5 GHz vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

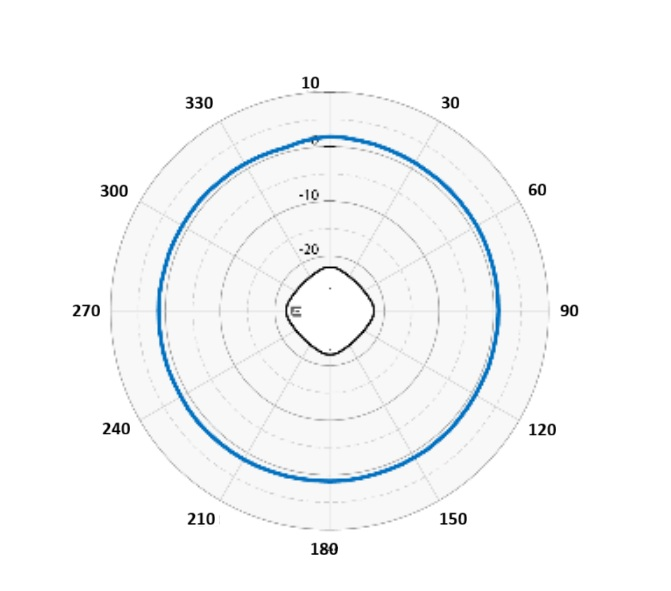

AP4020X 5 GHz Sensor - Horizontal Radiation Pattern
AP4020X 5 GHz sensor horizontal radiation pattern with an AP in the middle of the diagram
Click to expand in new window

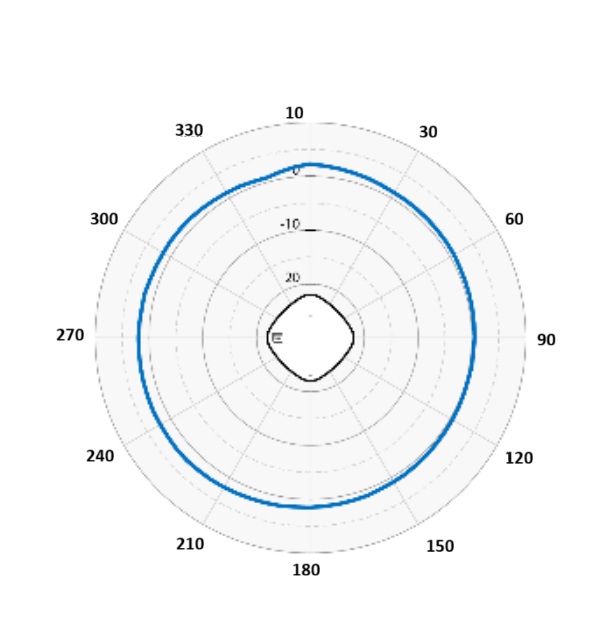

AP4020X 6 GHz Sensor - Horizontal Radiation Pattern
AP4020X 6 GHz sensor vertical radiation pattern with an AP in the middle of the diagram
Click to expand in new window

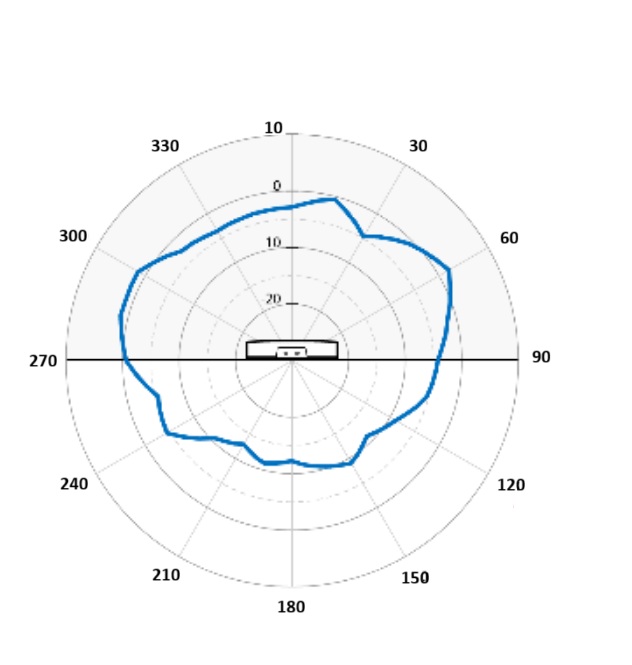

AP4020X 6 GHz Sensor - Vertical Radiation Pattern
AP4020X 6 GHz sensor horizontal radiation pattern with an AP in the middle of the diagram
