Understand Radio Mode

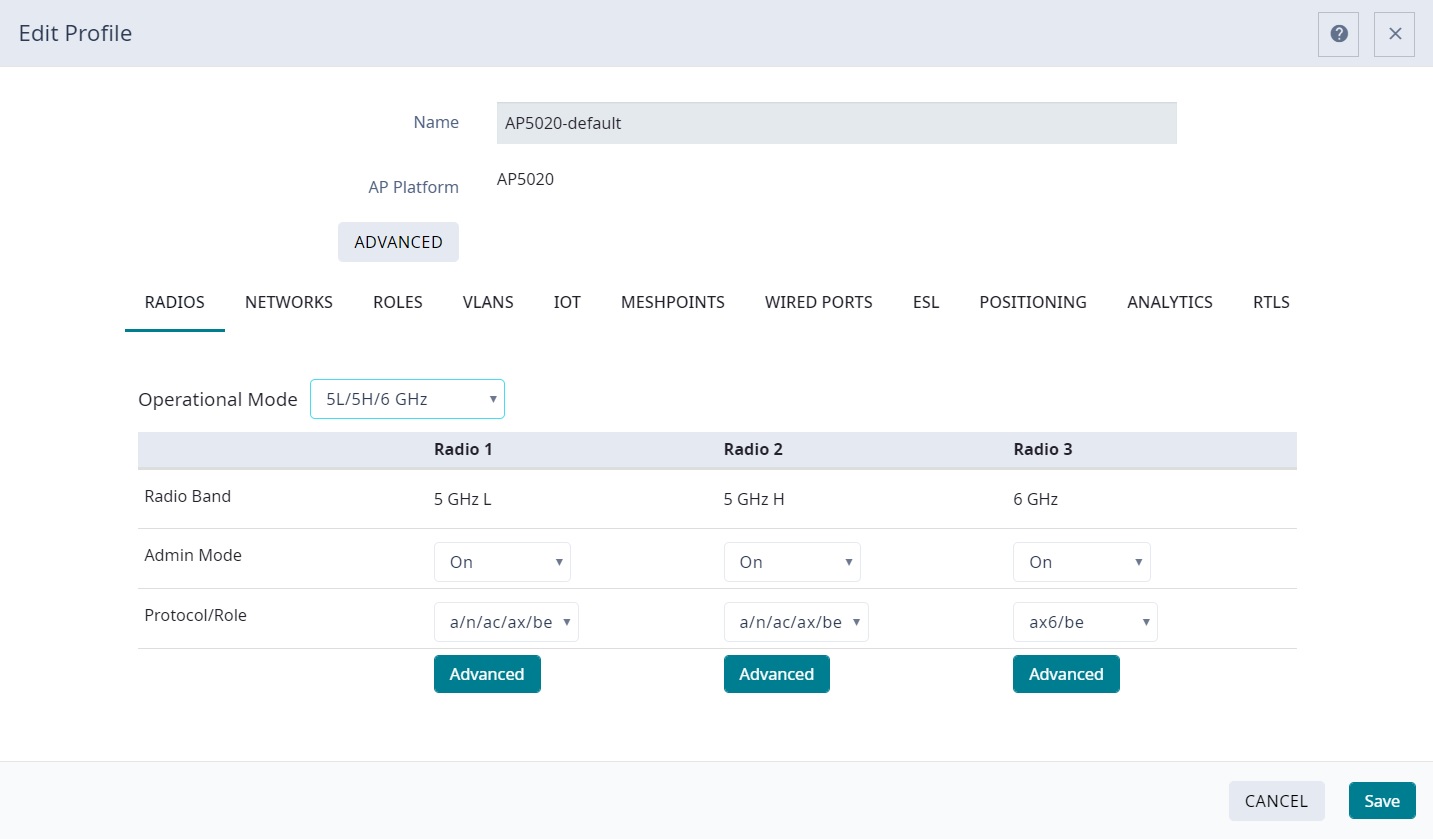

Configure radio Mode from the device group configuration Profile Radios tab.

Go to Sites and select a site.
Select Device Groups and select a device group.
Next to the Profile field, select to edit the profile.
Select the Radios tab.

ExtremeCloud IQ Controller presents valid values for Radio Mode based on the AP capability.

Note

Sensor mode converts the radio to a sensor for ADSP and Positioning. The AP4xx access point models offer a third radio that is a separate sensor radio. For more information, see Radio as a Sensor.

Note

Only one radio can be configured for Client Bridge. All traffic received by the client bridge AP over wired port or by the remaining radios is forwarded to the infrastructure network via the client bridge radio.

Table 1. Radio Modes
AP Model	Radio 1	Radio 2	Radio 3
AP3000/X	2.4GHz /6GHz (dual band) sensor b/g g/n b/g/n g/n/ax (Default) client-bridge ax6	5GHz sensor a/n/ac a/n/ac/ax (Default) client-bridge
AP302W	2.4GHz /5GHz (dual band) sensor b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge Note: 160 MHz channel width not supported.
AP305C/CX	2.4GHz /5GHz (dual band) sensor b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz sensor a/n/ac a/n/ac/ax client-bridge Note: 160 MHz channel width not supported. AP305C must configure sensor for both radios together.
Note: AP305C/CX offers a single port. When Client Bridge is configured on a single interface AP, the single interface is used as the client port, not as an uplink, and you will not see the ETH1 Port Function field in the Profile Advanced dialog. The Bridge port is not supported on access points with a single Ethernet port.
AP310i/e AP310i/e-1	2.4GHz /5GHz (dual band) sensor b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz sensor a/n/ac a/n/ac/ax client-bridge Note: 160 MHz channel width not supported.
AP360i/e	2.4GHz /5GHz (dual band) sensor b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz sensor a/n/ac a/n/ac/ax client-bridge Note: 160 MHz channel width not supported.
AP4000 AP4000-1	2.4GHz b/g g/n b/g/n g/n/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	6GHz/Sensor sensor ax6 client-bridge
AP4020/X/FX ¹	2.4GHz b/g g/n b/g/n g/n/ax g/n/ax/be client-bridge	5GHz a/n/ac a/n/ac/ax a/n/ac/ax/be client-bridge 5GHz H a/n/ac a/n/ac/ax a/n/ac/ax/be	6GHz ax6 ax6/be client-bridge 5GHz L a/n/ac a/n/ac/ax a/n/ac/ax/be
AP410i/e AP410i-1	2.4GHz b/g g/n b/g/n g/n/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	Sensor sensor (non-configurable)
AP410C AP410C-1	2.4GHz /5GHz b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	Sensor sensor wireless capture limited to one stream of data (1x1) sensor (non-configurable)
AP460e	2.4GHz b/g g/n b/g/n g/n/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	Sensor sensor (non-configurable)
AP460C/S6C/S12C	2.4GHz/ 5GHz b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	Sensor sensor (non-configurable)
AP5010	2.4GHz/ Tri-band Sensor, supports 2.4GHz wireless service, or a tri-band sensor sensor b/g g/n b/g/n g/n/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	6GHz ax6 client-bridge
AP5020	2.4GHz/ Tri-band Sensor, supports 2.4GHz wireless service, or a tri-band sensor sensor b/g g/n b/g/n g/n/ax g/n/ax/be a/n/ax/ac/be ax6/be client-bridge	5GHz a/n/ac a/n/ac/ax g/n/ax/be a/n/ax/ac/be ax6/be client-bridge	6GHz g/n/ax/be a/n/ax/ac/be ax6 ax6/be client-bridge
Note: For AP5020, indicate the Operating Mode. Based on selected operating mode, the Radios field is updated. Radio mode selection depends on Operating Mode. For example, when operating mode is 2.4/5/6 GHz Service, the Radio configuration on the profile allows 2.4 GHz modes for Radio 1, 5 GHz modes for Radio 2, and 6 GHz modes for Radio 3.
AP5050U AP5050D	2.4GHz/ Tri-band Sensor, supports 2.4GHz wireless service, or a tri-band sensor sensor b/g g/n b/g/n g/n/ax client-bridge	5GHz a/n/ac a/n/ac/ax client-bridge	6GHz (Not currently supported for regulatory compliance) ax6 client-bridge
AP505i	2.4GHz sensor b/g g/n b/g/n g/n/ax client-bridge	5GHz sensor a/n/ac a/n/ac/ax client-bridge
AP510i/e AP510i-1	2.4GHz /5GHz (dual band) sensor b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz sensor a/n/ac a/n/ac/ax client-bridge
AP560i/h	2.4GHz /5GHz (dual band) sensor b/g g/n b/g/n a/n/ac g/n/ax a/n/ac/ax client-bridge	5GHz sensor a/n/ac a/n/ac/ax client-bridge
AP39xx	5GHz sensor a/n/ac ac-strict	2.4GHz sensor b/g g/n b/g/n g/n-strict

The Protocol/Role options available for each AP4020/X/FX radio depends on the selected Operating Mode.
Radio 4 is disabled by default. It is reserved to operate in a future release as a dedicated sensor.
