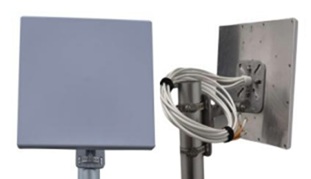

The AI-TQ08055 antenna is an indoor panel antenna that measures 250mm x 250mm x 25mm (9.84in x 9.84in. x 0.98in) and weighs 0.86 kg (1.9 lbs). It ships with a mounting bracket.
Procedure
Unpack the antenna from the shipping materials.
Assemble the mounting bracket. The pivot screws should be only finger-tight.
Mount the mounting bracket to the wall or pole.
Tighten the non-pivot fasteners to 45-inch lbs.
Assemble the antenna to the mounting bracket. Tighten the nuts to 45-inch lbs.
Attach the four cables to the AP for the specified frequencies. Tighten the RP-SMA connectors to 5 inch-pounds. See the AP installation guide for information on connecting the antenna to the correct ports.
Adjust the mounting bracket angles to point the panel antenna in the desired direction. Tighten the pivot screws to 50 -inch lbs.
