Install ML-2452-SEC6M4-036 on a Pole

About this task

The ML-2452-SEC6M4-036 is a indoor panel antenna. It measures 200 mm × 200 mm × 34 mm and weighs 1.00 lb (0.45 kg).
Click to expand in new window

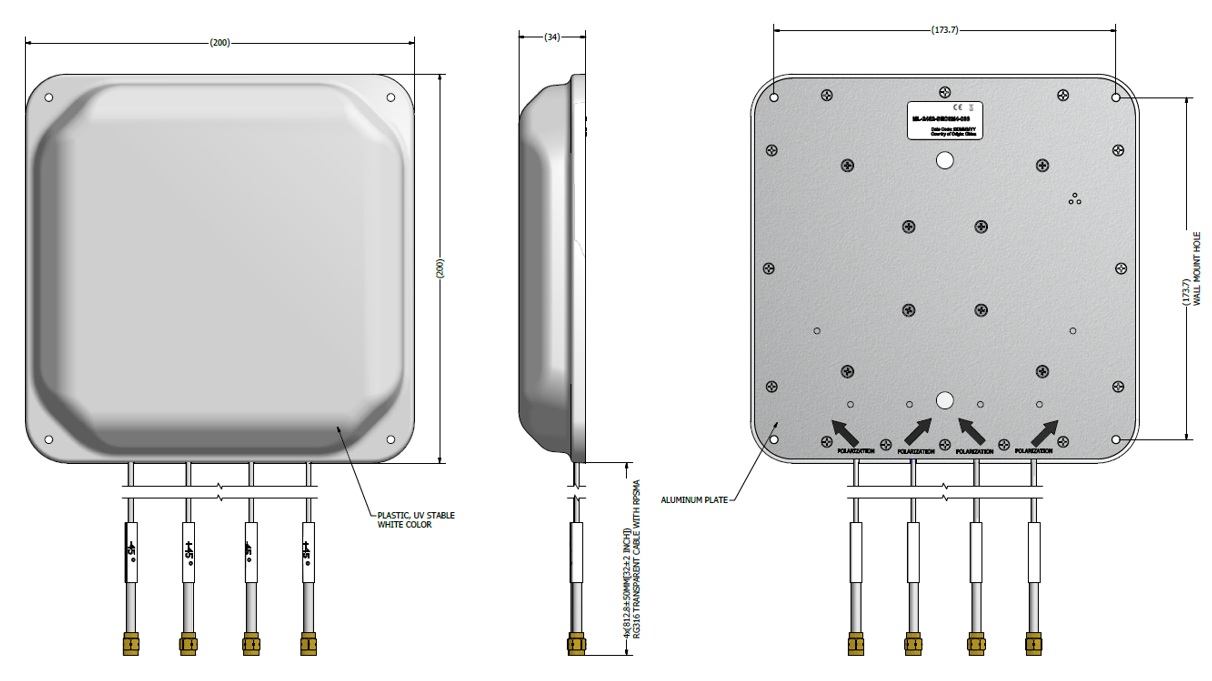

ML-2452-SEC6M4-036 Antenna
Click to expand in new window

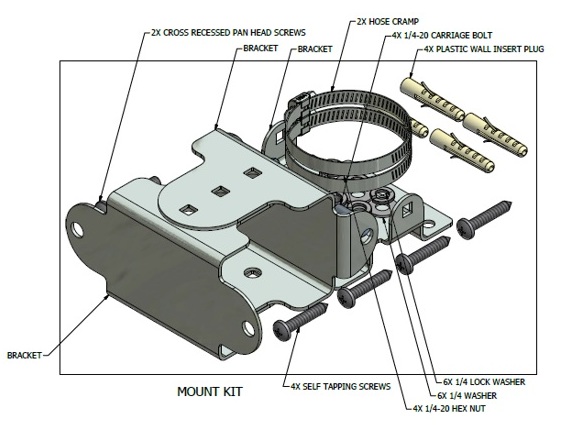

Pole Mount Kit

Procedure

  1. Unpack the antenna from the shipping materials.​
  2. Assemble the pole mounting bracket sections to each other per the included instructions. The screws only need to be finger tight at this step.
  3. Thread the hose clamps through the pole mounting section of the included bracket.
  4. Use the hose clamps to attach the pole mounting section to the pole. Tighten the hose clamp screws to 15 - 20 inch lbs.
  5. Using the two pan head screws attach the antenna to the bracket. Tighten those two screws to 25 inch-lbs.
  6. Mount the AP in a location the cables can reach.
  7. Attach the RP-SMA connectors from the cables to the appropriate connectors on the AP. Tighten the connectors to 5 inch-lbs. See the AP installation guide for information on connecting the antenna to the correct ports.
  8. Adjust the antenna for the optimum Rx/Tx signals and then torque the bracket screws to 45 inch-lbs.
  9. Attach the 4 cables to the AP for the specified frequencies. Tighten the RP-SMA connectors to 5 inch-lbs.
9039550-00 Rev AA
