Summit X460-24t Switch Ports and Slots

The front panel of the Summit X460-24t switch includes:

• Twenty-four fixed autosensing 10/100/1000BASE-T ports (ports 1–24) that provide 24 Gbps of high-density copper connectivity
• Eight unpopulated SFP ports (ports 21–28) that provide 8 Gbps of fiber connectivity. The SFP ports support both 100BASE-FX and 1000BASE-X optical modules.

  Ports 21 through 24 are implemented as shared ports that pair a copper port with a fiber port. For more information about combination ports, see Combination Ports and Failover.

  For information about SFPs, see the Extreme Networks Pluggable Transceivers Installation Guide.

• 10/100/1000 Mbps management port.
• Serial console port used to connect a terminal and perform local management.
• LEDs to indicate port status and switch operating conditions.

  For a description of the LEDs and their operation, see Summit X460 Series Switch LEDs.

• Stack number indicator.

Summit X460-24t Switch Front Panel

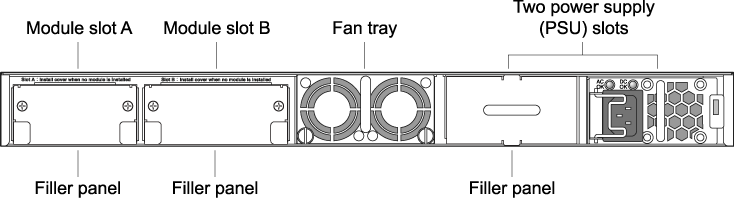

The rear panel of the Summit X460-24t switch (Summit X460-24t Switch Rear Panel) includes:

• Two slots for port option cards or stacking modules (see Port Option Cards for Summit X460 Series Switches).
• Replaceable fan tray.
• Two power supply bays for either AC or DC power supplies (see Summit 300 W AC and DC Power Supplies).

Summit X460-24t Switch Rear Panel
