To configure an Access Control Group, take the following steps:

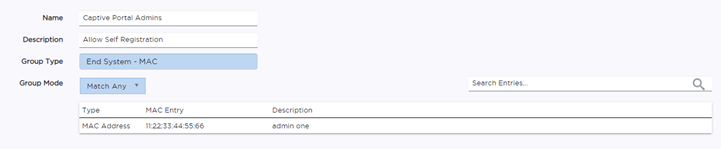

The entry parameters depend on the Group Type. Access Control Group Settings describes each setting and provides an example value configured for the Access Control Group.
| Field | Description |
|---|---|
| Name | Group name. Example: Captive Portal Admins |
| Description | Description of the group. Allows Self Registration. |
| Group Type | Criteria by which the accounts are grouped. Example: End System — MAC |
| Group Mode | For End
System LDAP User Groups only — Specify whether to
match any or match all of the LDAP attributes. Valid values
are:
Example: Match Any |
| Group Entries | A list of entries
for the Group Type. Example: End System — MAC. Use the Search field to search for an entry. |
Next, review the Default Access Control Groups, then we will create an Admin access policy role.
