To create Option 78 for a Centralized site:
- Go to .
- Right-click the server node, and
select Set predefined
options.

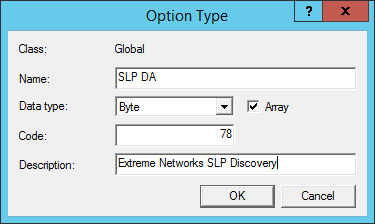

- Select Add, and
configure the following parameters:
- Name
- Provide a name for the option, for example SLP
DA.
- Data Type
- Set the data type to Byte
and select the Array
check box.
- Code
- 78
- Description
- Optional description. For example,
Extreme Networks
SLP Discovery.
Option Type
- Select OK.

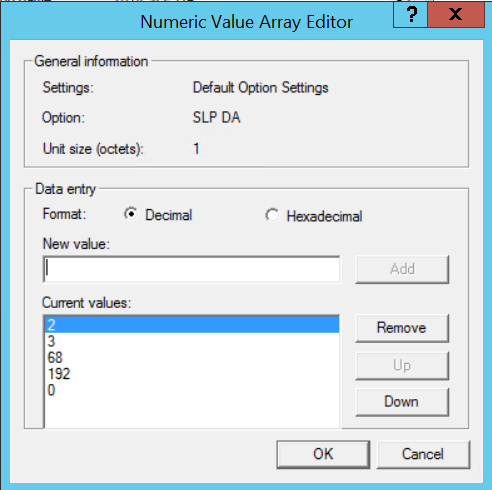

- Select Edit Array and enter the IP address per octet.
DHCP Option 78 Array Decimal Values
- Select OK.
