Interface reload delay to prevent traffic black-holing in vLAG

The reload-delay feature has two configuration commands.

Consider the two following scenarios.

Scenario 1

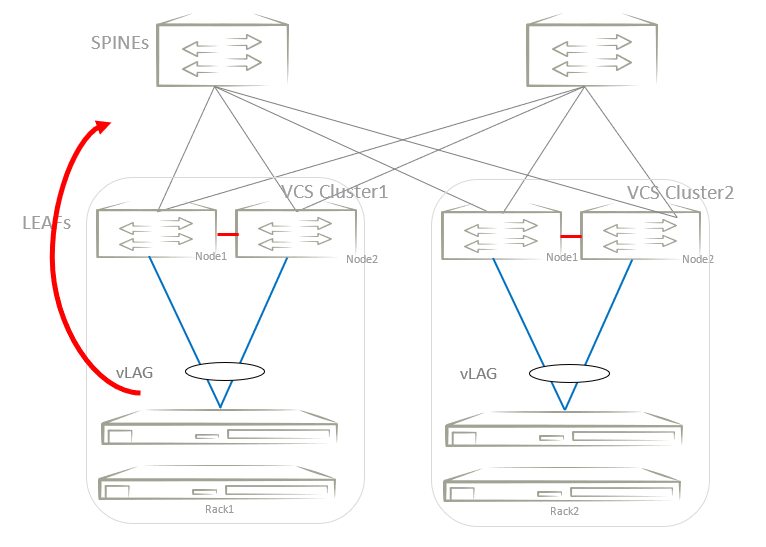

Node1 in VCS Cluster1 is reloading. The vLAG between Node1 and Node2 is not formed yet, but the BGP session between leaf and spine nodes is established. Servers could start load balancing the traffic to Node1, but that traffic is black holed as the vLAG is not formed yet.

Click to expand in new window
Scenario 1

Scenario 2

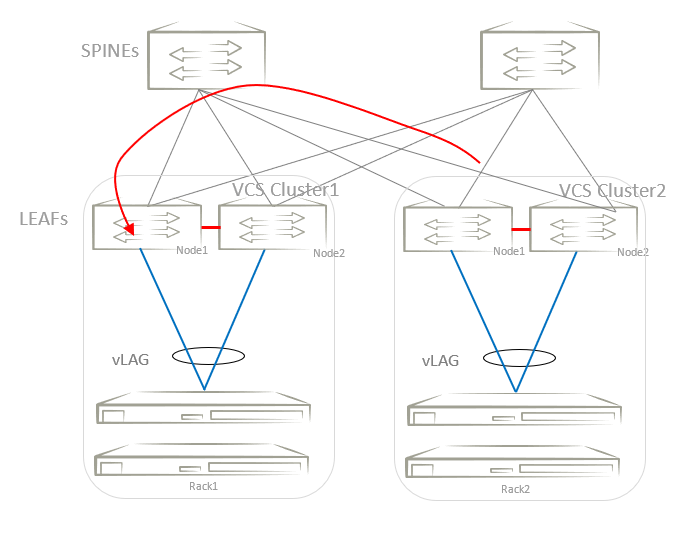

Node1 in VCS Cluster1 is reloading. Routing protocols between leaf and spine nodes could be converging before all tunnels are formed in Node1. Spine nodes could start load balancing the overlay traffic to Node1, but all this traffic could be dropped as the tunnels are not yet formed in Node1.

Click to expand in new window
Scenario 2

After a switch reload, interfaces on which reload-delay is enabled remain administratively down for at least the delay-time configured by the user. After this time, the interface becomes administratively up.

For graceful vLAG host-traffic restoration, the reload delay must be configured on client interfaces such as physical interfaces and vLAG/port-channel interfaces. For graceful spine-traffic restoration, reload delay isconfigured on a loopback interface whose IP address is used as the source IP address of a tunnel end point. The routing protocols become aware of the tunnel interfaces only after the specified reload-delay time, after the tunnel has been established. This avoids traffic black-holing.

Configuration examples

This example enables reload delay and specifies an optional delay time of 1200 seconds on a port-channel.
device# configure terminal
device(config)# interface port-channel 10
device(config-Port-channel)# reload-delay enable 1200
This example enables reload delay and specifies a delay time on an Ethernet interface.
device# configure terminal
device(config)# int eth 0/12
device(conf-if-eth-0/12)# reload-delay enable 1600
Newly configured reload delay value will be applicable after system reload.
device(conf-if-eth-0/12)#

This example enables reload delay and specifies a delay time on a loopback interface.
device# configure terminal
device(config)# interface loopback 10
device(config-lo-10)# reload-delay enable 1200
This example specifies a global reload-delay time of 1800 seconds. (The interface configuration always takes precedence over the global configuration.)
device# configure terminal
device(config)# reload-delay 1800
This example uses the show interface port-channel command to display the configuration on a port-channel.
device# show interface port-channel 10
	Port-channel 10 is admin down, line protocol is down (admin down)
	Hardware is AGGREGATE, address is d884.66e9.fb60
    	Current address is d884.66e9.fb60
	Interface index (ifindex) is 671088650 (0x2800000a)
	Minimum number of links to bring Port-channel up is 1
	MTU 1548 bytes
	LineSpeed Actual     : Nil
	Allowed Member Speed : 10000 Mbit
	Priority Tag disable
	Forward LACP PDU: Disable
	Route Only: Disabled
	Tag-type: 0x8100
	Reload delay time: 1200, Remaining time: 975
Last clearing of show interface counters: 00:03:45
	Queueing strategy: fifo
	Receive Statistics:
