Summit X150-24p Switch Ports and Slots

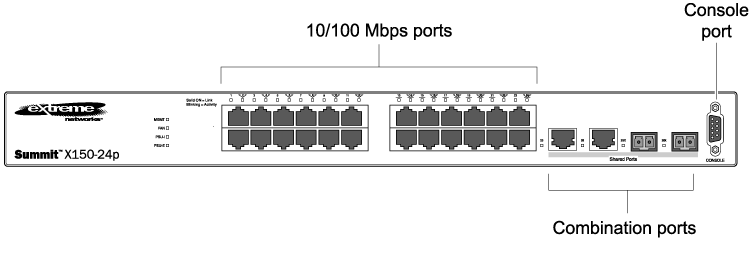

The front panel of the Summit X150-24p switch includes:

• Twenty-four fixed autosensing 10/100BASE-T PoE ports (ports 1–24). In addition to 4 Gbps of high-density copper connectivity, these ports also provide a full 15.4 Watts of PoE per port.
• Two combination ports (ports 25–26) using RJ45 connectors and SFPs to provide 2 Gbps of copper or fiber connectivity.

  For more information about combination ports, see Combination Ports and Failover.

  For information about SFPs, see the Extreme Networks Pluggable Transceivers Installation Guide.

• LEDs to indicate port status and switch operating conditions.

  For a description of the LEDs and their operation, see Summit X150 Series Switch LEDs.

• Serial console port used to connect a terminal and perform local management.

The rear panel of the Summit X150-24p switch includes:

• Ethernet management port with associated LEDs.
• Redundant power input connector for optional connection to the EPS-500 External Power Supply (Model No. 10911) with full PoE power support.

  The connecting redundant power supply cable is shipped with the EPS-500 unit. See EPS-500 External Power Supply Unit for more information.

• AC power input socket.

  The internal AC power supply operates from 100 VAC to 240 VAC.
