Deployment Considerations and Restrictions

Before deploying Tunnel Concentrator, consider the following:

• Tunnel Concentrator preserves DSCP markings for both upstream and downstream direction.

• By default, Tunnel Concentrator blocks non-essential broadcasts (everything except DHCP and ARP). When you disable this option, Tunnel Concentrator floods broadcasts to all APs.



  Note

  Use this setting with caution. Disabling this option may result in a significant amount of broadcast traffic being sent toward the APs.

• IPSec is supported only with APs that are managed by ExtremeCloud IQ Controller.

• The VLAN and subnet that you apply to the tunnel termination point on Tunnel Concentrator must be different than the VLAN and subnet for client traffic.

• Tunnel Concentrator does not support the use of a NAT router between the access point and Tunnel Concentrator if the deployment is managed by ExtremeCloud‌ IQ. Tunnel Concentrator must be on the same side of the firewall as the access point as illustrated in the following image.

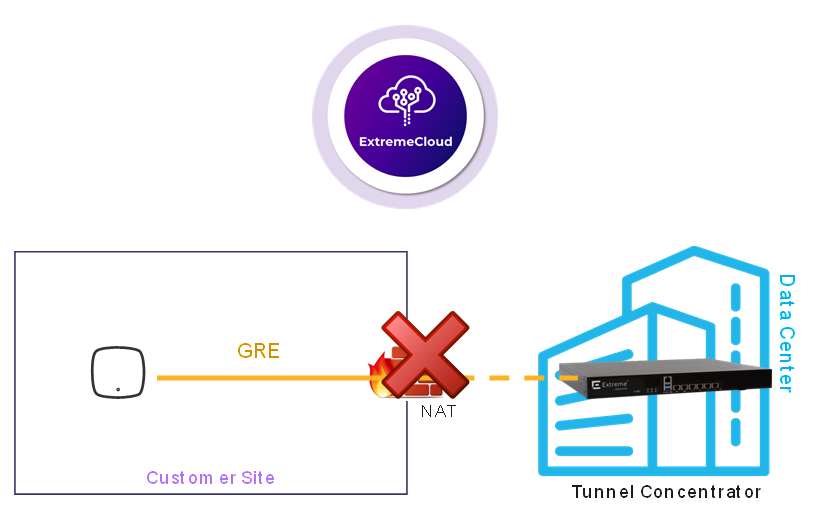

  NAT Restriction with ExtremeCloud‌ IQ as Management Application





  Note

  The NAT restriction does not apply to Tunnel Concentrator deployments that are managed by ExtremeCloud IQ Controller.

• The use of the ICC1 interface for Out-of-Band management of Tunnel Concentrator is not recommended for the following reasons:

  • The ICC1 interface is intended for backplane inter-connect for multi-node cluster configurations. This configuration is not currently supported for Self-Orchestration deployments.

  • ExtremeCloud Edge leverages Kubernetes to manage the state of installed applications. The Kubernetes "cluster" is bound to the address of ICC interfaces (or VRRP if it's provisioned). However, if those addresses change, or need to be modified, Kubernetes recognizes that the existing configuration binding is no longer valid and unwinds the installation, resulting in the purging of the installed applications. In other words, if the ICC IP addresses are modified, the system resets to a pre-deployment state. As a protection against accidental destruction, the Universal Compute Platform user interface prevents modifications to ICC addresses once the deployment type is initialized, which occurs when the standalone cluster is created.

  • Tunnel Concentrator relies on the routing table of the Universal Compute Platform host to be able to reach the management entity. Often, the routing path for out-of-band management segments is constrained and does not provide the necessary access to the internet, which is required for ExtremeCloud IQ.

  For these reasons, ICC1 IP settings must be configured, but we strongly recommend to leave network connectivity disabled. Instead, we recommend that you configure the interface settings to a non-overlapped network segment, preferably a reserved and not-in-use address space. Configure the host to default all network access to a default gateway path through one of the data ports.
