VSP 7432CQ Features

The front panel of the VSP 7432CQ switch includes:

• 32 100-gigabit Ethernet ports capable of supporting passive copper QSFP28/QSFP+ and active fiber QSFP28/ QSFP+. With a few exceptions, noted below, these ports are configurable for 100 Gb, 40 Gb, 4x25 Gb, and 4x10 Gb modes. For information about QSFP28 and QSFP+ optical modules, see the Extreme Networks Pluggable Transceivers Installation Guide.



  Note

  Exception: Physical port 28 cannot be partitioned.



  Note

  When Fabric Connect is enabled, physical ports 31 and 32 are reserved for internal use. Refer to Administering VSP Operating System Software for details.

• RJ45 serial console port used to connect a terminal and perform local management.

• USB port for access to external storage.

• RJ45 out-of-band 10/100/1000BASE-T management Ethernet port.

• LEDs to indicate port status and switch operating conditions. For a description of the LEDs and their operation, see VSP 7400 Series Switch LEDs.

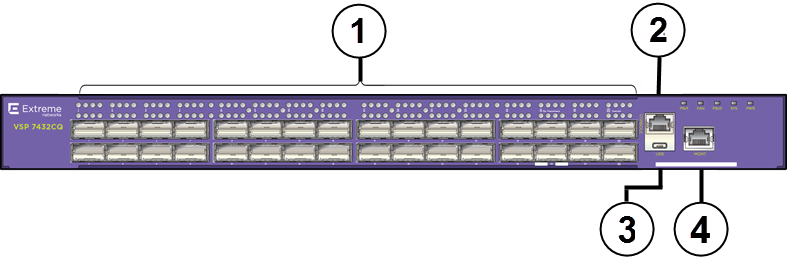

VSP 7432CQ Switch - Front Panel

1 = QSFP28/QSFP+ Ethernet ports	3 = USB port
2 = Console port: RJ45	4 = Management port: RJ45

The rear panel of the VSP 7400 switch includes:

• Two power supply bays for 750 W AC or DC power supplies.

• Six bays for replaceable fan modules.



  Note

  The color of the tab on the fan tray indicates the airflow direction:

  • Red: front-to-back

  • Blue: back-to-front

  The operating-system software cannot display the airflow direction.

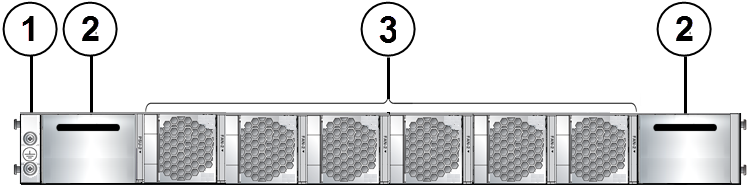

VSP 7432CQ Switch - Rear Panel

1 = Grounding point	3 = Fan modules
2 = Power supply slots (unpopulated)
