Create End Points

Configuration → Vouchers → Create End Points

ExtremeGuest allows network end points to be added to the network using vouchers.

To create an end point voucher:

  1. Go to Configuration → Vouchers from the main menu.
    The Users tab displays by default.
  2. Select the End Points tab.
    The Create End Points window displays.
    Click to expand in new window

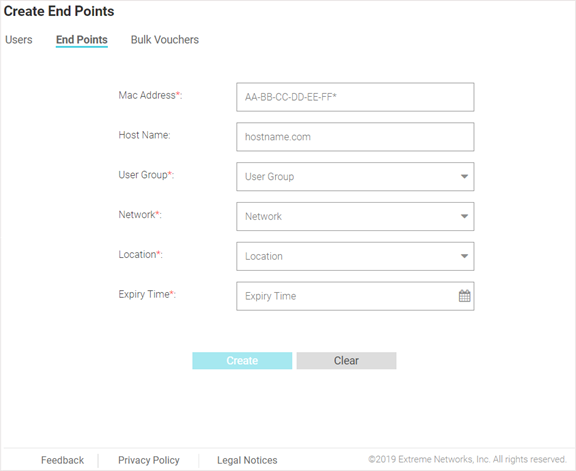

    Create End Points Screen
  3. Configure the following details for each end point voucher:
    MAC Address Enter the MAC address for the end point. The MAC address should be added in the following format: AA-BB-CC-DD-EE-FF
    Host Name Optionally, enter a hostname to associate with the network end point.
    User Group Select a user group from the list to associate it to the network end point.
    Network Select a network from the list to associate it to the network end point.
    Location Select a location from the list to associate it to the network end point.
    Expiry Time Use the calendar to specify the ending date and time that the end point will be deactivated.
  4. When all mandatory fields have been completed, select Create to complete voucher creation.
    To discard any changes made to the form select Clear.
