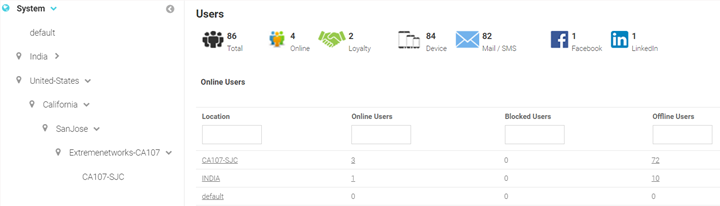

Location | Displays the location or RF Domain name for each configured site. |
Online Users | Displays the number of users currently connected to the network for each Location. |
Blocked Users | Displays the number of users that are currently blocked from accessing the networks for each Location. |
Offline Users | Displays the number of users that are not currently connected to the network for each Location. |
Total Users | Displays the number of users, both online and offline, known to the system. |
Drill down to the site level to view online and blocked user details for a specific site.
User | The User column displays the user icon associated with each online user. |
Name | The Name column displays the username associated with each online user. If using social media authentication, the name is provided by the social media source. |
The Email column displays the e-mail address associated with each online user. If using social media authentication, the e-mail address is provided by the social media source. | |
Loyalty ID | The Loyalty ID column displays the loyalty id number associated with each online loyalty customer. |
Gender | The Gender column displays an icon representing the gender of each online user. |
Source | The Source column displays the method that each online user used to authenticate. When social media authentication is enabled this will include Facebook, Google Plus, LinkedIn and Instagram. |
Last Login | The Last Login column displays the full date and time when the user last authenticated on the network. |
MAC | The MAC column displays the MAC address for each listed user. This column is not displayed by default, but may be enabled from the Columns menu. |
Mobile | The Mobile column displays the mobile phone number for each listed user. This column is not displayed by default, but may be enabled from the Columns menu. |
City | The City column displays the city associated with each listed user. This column is not displayed by default, but may be enabled from the Columns menu. |
SSID | The SSID column displays the wireless network SSID that each listed user is connected through. This column is not displayed by default, but may be enabled from the Columns menu. |
Network | The Network column displays the wireless network that each listed user is connected through. This column is not displayed by default, but may be enabled from the Columns menu. |
Action | From the Action column perform one
of the following actions on a user. ![]() |
