Sites

Configuration → Sites

The Sites screen lists sites attached to the ExtremeGuest application. It provides description and location information for sites.

Note

Note

For ExtremeWireless WiNG deployments, enter the ExtremeGuest IP address on the WiNG Controller or AP for automatic synchronization of sites. In these deployments there is no need to add or edit sites.
Note

Note

For ExtremeCloud Appliance deployments, enter the ExtremeGuest IP on the ExtremeCloud Appliance host for automatic synchronization of sites. In these deployments there is no need to add or edit sites.
  1. Go to Configuration → Sites from the main menu.
    A list of existing sites displays. If you are using an ExtremeWireless WiNG or ExtremeCloud Appliance deployment and have entered the IP address of the ExtremeGuest server, the known sites added on these deployments will auto populate. Sites that are enabled display a green icon. Disabled sites display a grey icon. APs connected to disabled sites do not count against the licenses in use.
    Click to expand in new window

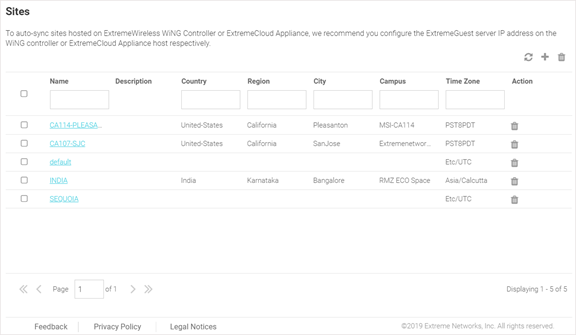

    Sites Screen
  2. The Sites screen displays the following:
    Name Displays the name associated with each site. Double-click the required site name from the displayed list. The site details open as a dialogue box, where you can edit the site's Name, Description, Country, Region, City, Campus, Time Zone, Latitude or Longitude.
    Note

    Note

    To filter by name or portion of a name, enter the string in the box at the top of the Name column. The screen updates with sites having names matching the specified string. To clear the filter select the GUID-DDC5553F-EBE9-48EB-A9CC-D6AB7318DCA1-low.png icon.
    Description Displays the description associated with each site.
    Country Displays the name of the country for each site.
    Note

    Note

    To filter by country name or portion of a country name, enter the string in the box at the top of the Country column. The screen updates with sites having country configuration matching the specified string. To clear the filter select the GUID-DDC5553F-EBE9-48EB-A9CC-D6AB7318DCA1-low.png icon.
    Region Displays the optional region associated with each site such as the state, province, or county.
    Note

    Note

    To filter by region name or portion of a region name, enter the string in the box at the top of the Region column. The screen updates with sites having region configuration matching the specified string. To clear the filter select the GUID-DDC5553F-EBE9-48EB-A9CC-D6AB7318DCA1-low.png icon.
    City Displays the optional city associated with each site.
    Note

    Note

    To filter by city name or portion of a city name, enter the string in the box at the top of the City column. The screen updates with sites having city configuration matching the specified string. To clear the filter select the GUID-DDC5553F-EBE9-48EB-A9CC-D6AB7318DCA1-low.png icon.
    Campus Displays the optional campus name configured for each site.
    Note

    Note

    To filter by campus name or portion of a campus name, enter the string in the box at the top of the Campus column. The screen updates with sites having campus configuration matching the specified string. To clear the filter select the GUID-DDC5553F-EBE9-48EB-A9CC-D6AB7318DCA1-low.png icon.
    Time Zone Displays an abbreviated version of the optional time zone configured for each site.
    Note

    Note

    To filter by time zone, enter the abbreviated time zone name in the box at the top of the Time Zone column. The screen updates with sites falling within the specified timezone. To clear the filter select the GUID-DDC5553F-EBE9-48EB-A9CC-D6AB7318DCA1-low.png icon.
    Action Select the GUID-62FE7F01-121E-434B-948B-67D2EF5A093F-low.png icon to remove the site from ExtremeGuest.
  3. Select the GUID-CE3E6C28-31A8-4DE8-BB48-C207D9A7315A-low.png icon to update the data in the sites table.
  4. Select the GUID-BA8E61C7-AFCB-4AE1-8D32-83BD126D691A-low.png icon to add a new site.
    Provide a Name for the new site. Optionally configure a Description, Country, Region, City, Campus, Time Zone, Latitude and Longitude and select Save.
    Name Provide a name for the site.
    Note: This field is mandatory
    Description Optionally, provide a description for the site.
    Country Optionally, specify the code of the country where this site will fall.
    Region Optionally, specify the region within the specified country where this site will fall.
    City Optionally, specify the city within the specified region where this site will fall.
    Campus Optionally, specify the campus within the specified city where this site will fall.
    Timezone Optionally, specify the timezone applicable to this site.
    Latitude/Longitude Optionally, specify the latitude and longitude to identify the exact geographical location of the site.
    Save/Cancel Select Save to save your changes. Select Cancel to exit without saving your changes.
  5. To remove multiple sites from ExtremeGuest, select the boxes for each site then select the GUID-62FE7F01-121E-434B-948B-67D2EF5A093F-low.png icon.
