Onboarding Rules

Configuration → Onboarding → Rules

Onboarding rules are used in conjunction with onboarding policies to give flexibility when determining hotspot user access. Policies are matched to the hotspot user based on onboarding rules. Then the matching policy with the highest precedence number is used to onboard the hotspot user. Create onboarding policies before creating onboarding rules.

To create an Onboarding Rule:

  1. Go to Configuration → Onboarding → Rules from the main menu.
    The Onboarding Rules screen displays.
    Click to expand in new window

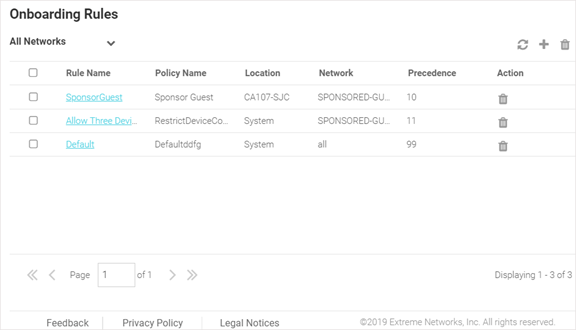

    Onboarding Rules Screen
  2. Configured onboarding rules display with the following information:
    Rule Name Displays the user configured rule name for each onboarding rule.
    Policy Name Displays the Policy Name associated with each rule.
    Location Displays the location associated with each rule. Locations are based on the network associated with the rule.
    Network Displays the network associated with each onboarding rule. A rule can also apply to All Networks.
    Precedence Displays the precedence number for each onboarding rule. Precedence determines which order rules are applied in with the higher precedence rules matched first.
    Action Select the GUID-62FE7F01-121E-434B-948B-67D2EF5A093F-low.png icon to remove the associated onboarding rule from ExtremeGuest.

  3. Select the GUID-CE3E6C28-31A8-4DE8-BB48-C207D9A7315A-low.png icon to update the data in the onboarding rules list.
  4. Select the GUID-BA8E61C7-AFCB-4AE1-8D32-83BD126D691A-low.png icon to add a new onboarding rule.
  5. Use the Network pull-down menu to select the networks that the onboarding rule applies to. The default value is All Networks, which applies the rule to all networks.
  6. Use the Location pull-down menu to navigate the system tree and select the site that the onboarding rule applies to. The default value is System, which applies the rule to all locations.
  7. Use the Precedence Level spinner control to assign a precedence to the rule. The precedence value of a rule determines its priority.
    Note

    Note

    Lower the precedence value, higher is the priority. Rules with lower precedence will be applied first.
  8. Select Apply when complete to add the onboarding rule.
  9. To remove multiple onboarding rule from ExtremeGuest, select the boxes for each policy then select the trashcan icon.
