Analyze End Points

Analyze → End Points

Click to expand in new window

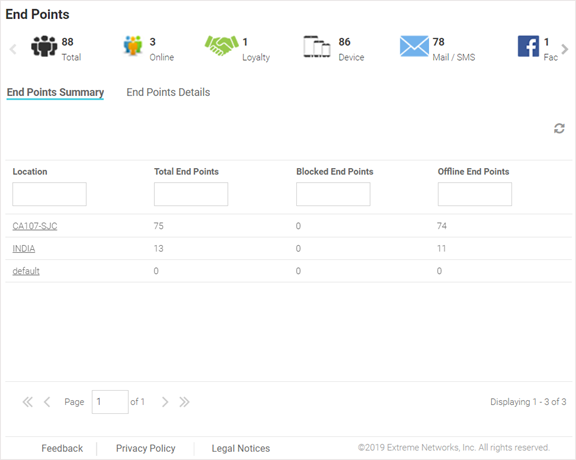

End Points Summary Screen

The End Points screen provides a system-wide summary of all end-points as well as detailed information for each end-point. End points are the guest users/devices registered with and authenticated by ExtremeGuest captive portal server. This includes users logged in via e-mail/sms, social-media login, loyalty card holders, devices, etc.

End Point Summary

The End Point Summary screen displays the following information:
Location The name of the location/site (RF Domain).
Total End Points The total number of end points per location.
Blocked End Points The total number of blocked end points per location.
Offline End Points The total number of end points per location that are currently offline.

End Point Details

The End Point Details screen displays the following online users information:
MAC The MAC column displays the MAC (Media Access Control) Address associated with each end point.
Host Name The Host Name column displays the Host Name associated with each end point.
Device Type The Device Type column displays the device model associated with each end point.
OS The OS column displays the operating system used by each end point.
Status The Status column displays the authentication status of each end point.
Last Login The Last Login column displays the full date and time when the end point last authenticated on the network.
Action From the Action column perform one of the following actions on an end point. Select Block to stop an end point from passing traffic on the network. Select Disconnect to terminate an end point's session on the network. Select Delete to remove an end point from the database. If the end point connects again they will be treated as new end point.

For information on how to filter end-points, see Filtering End Points Results.
