Onboard User Interface

The web user interface is used to manually add headless devices that do not have a browser available for authentication. To access the onboard user interface an onboarding user must be created by the administrator. Once created, login with the onboard user's username and password to access the onboard user interface.
Click to expand in new window

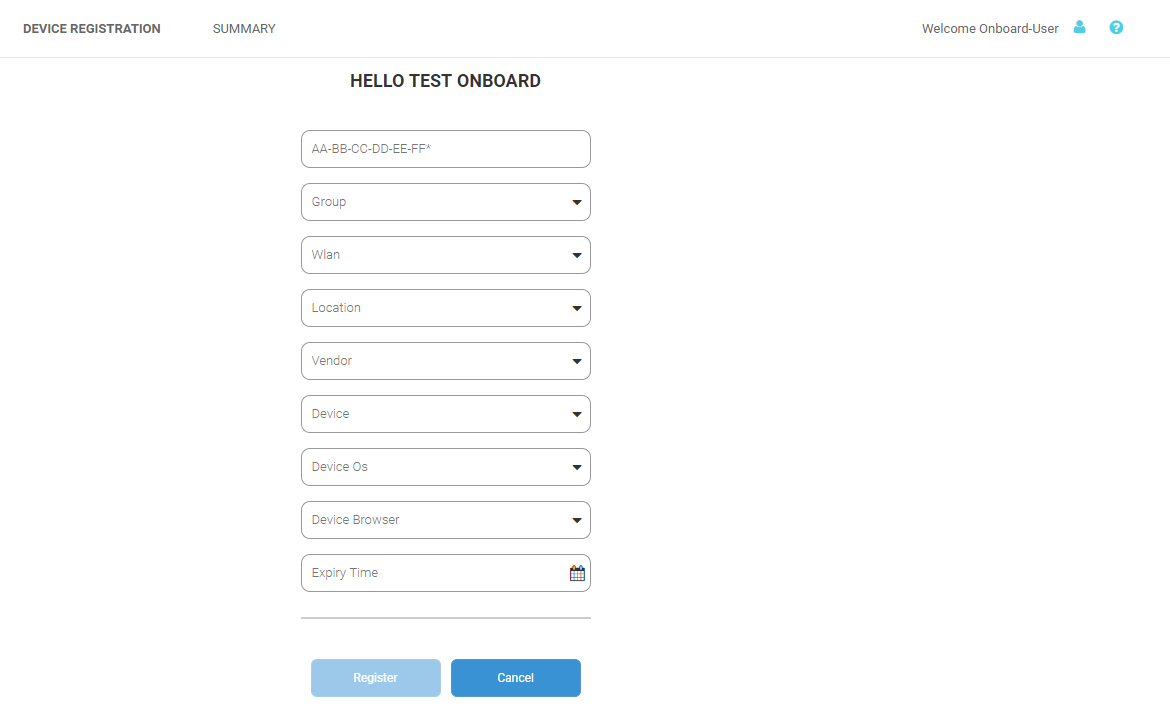

Onboard User Interface - Device Registration
Configure the following device details to add a headless device to the network:
MAC Address Enter the MAC address for the device being added.
Group Use the pull-down menu to select a group to add the new device to. New groups are added by the admin user.
Network Use the pull-down menu to select a network to associate the new device with. New WLANs are added by the admin user.
Location Use the pull-down menu to select a site to associate the new device with.
Vendor Use the pull-down menu to select the Vendor who manufactured the device being added.
Device Use the pull-down menu to specify the type of device being added to the network.
Device OS Use the pull-down menu to specify the operating system running on the device being added.
Device Browser Use the pull-down menu to specify the browser type in use on the new device.
Expiry Time Specify a date when the device will be automatically removed from the network.
Click to expand in new window

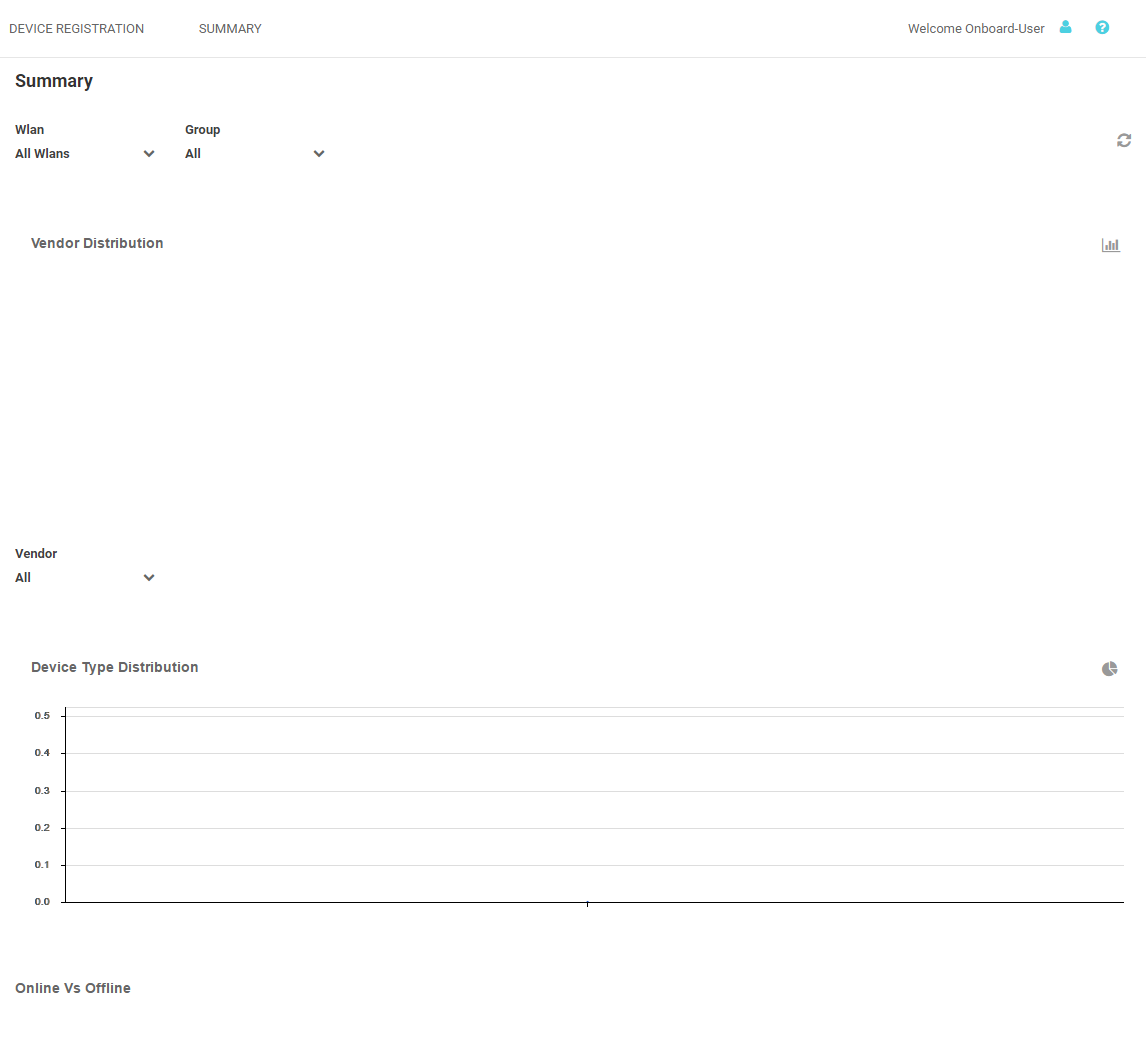

Onboard User Interface - Summary Screen

The Summary tab displays Vendor Distribution, Device Type Distribution, and Online Vs Offline status for devices. These results can be filtered by WLAN or Group.
