FEC Filtering Configuration Example

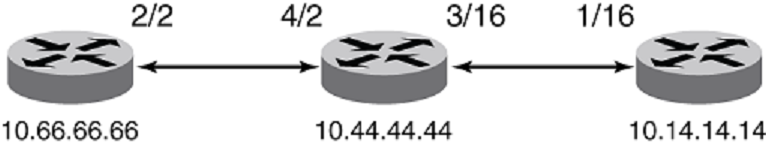

Consider three MPLS router system devices with an ID 10.66 with the transit device between them.

Click to expand in new window
Inbound FEC filtering example

The following configuration configures the prefix list to allow all /32 addresses, the prefix list to allow 172.16.0.0/16 ge 24 le 24, prefix list to allow172.16.0.0/16 ge 24 le 28, and a prefix list to allow all of the previous FECs.

device(config)# ip prefix filter172_24 permit 172.16.09.0/16 ge 24 le 24
device(config)# ip prefix filter172_24 permit 172.16.09.0/16 ge 24 le 24
device(config)# ip prefix-list filter172_28 permit 172.16.0.0/16 ge 24 le 28
device(config)# ip prefix-list filterAll permit 0.0.0.0/0 ge 32
device(config)# ip prefix-list filterAll permit 172.16.0.0/16 ge 24 le 28

Verify the configuration by using the show mpls ldp command.

device(config)# exit
device# show mpls ldp
Label Distribution Protocol version 1
  LSR ID: 10.44.44.44, using Loopback 1 (deleting stops LDP)
  Hello interval: Link 5 sec, Targeted 15 sec
  Hold time value sent in Hellos: Link 15 sec, Targeted 45 sec
  Keepalive interval: 6 sec, Hold time multiple: 6 intervals
  Load sharing: 1
  Tunnel metric: 0
  FEC used for auto discovered peers: current 129, configured 129
  Graceful restart: disabled
device(config)# do show mpls ldp database
Session 10.44.44.44:0 - 10.14.14.14:0
 Downstream label database:
   Label        Prefix            State
   3            10.14.14.14/32    Installed
   1024         172.16.8.0/24     Installed
   1025         172.16.16.0/24    Installed
   1026         172.16.32.0/24    Installed
   1027         172.16.64.0/24    Installed
   1028         172.16.8.0/28     Installed
   1029         172.16.8.16/28    Installed
   1030         172.16.8.32/28    Installed
   1031         172.16.8.64/28    Installed
 Upstream label database:
   Label        Prefix
   3            10.44.44.44/32
   1033         10.66.66.66/32
Session 10.44.44.44:0 - 10.66.66.66:0
 Downstream label database:
   Label        Prefix            State
   3            10.66.66.66/32    Installed
 Upstream label database:
   Label        Prefix
   3            10.44.44.44/32
   1024         172.16.8.0/24
   1025         172.16.16.0/24
   1026         172.16.32.0/24
   1027         172.16.64.0/24
   1028         172.16.8.0/28
   1029         172.16.8.16/28
   1030         172.16.8.32/28
   1031         172.16.8.64/28
   1032         10.14.14.14/32
