Port Channel Configuration

To define a port channel configuration for a device profile:

1. Select Configuration → Devices → System Profile from the web UI.

   A list of device profiles is displayed in the right-hand UI. This list contains default and user-defined profiles.

2. Select a profile from those listed on the screen.

   The profile's configuration menu is displayed.

3. Expand the Interface menu and select Port Channels.

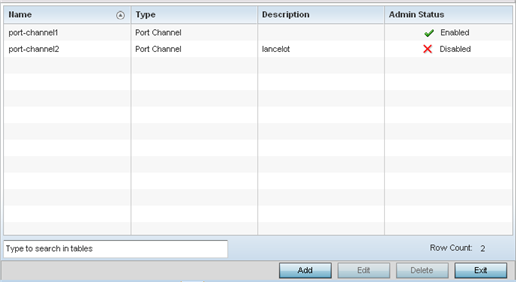

   The Port Channels screen displays.





4. Review existing port channel configurations and their current status:

   Name	Displays the port channel's numerical identifier assigned to it when it was created. The numerical name cannot be modified as part of the edit process.
   Type	Displays whether the type is port channel.
   Description	Lists a short description (64 characters maximum) describing the port channel or differentiating it from others with similar configurations.
   Admin Status	A green checkmark defines the listed port channel as active and currently enabled with the profile. A red "X" defines the port channel as currently disabled and not available for use. The interface status can be modified with the port channel configuration as required.
