Configuring a Bonjour Forwarding Policy

About this task

A Bonjour forwarding policy enables the discovery of services on VLANs not visible to the device running the Bonjour Gateway. Bonjour forwarding enables the forwarding of Bonjour advertisements across VLANs to enable the Bonjour gateway to build a list of services and VLANs where services are available.

Note

Only one (1) Bonjour forwarding policy is configurable.

Note

There must be Layer 2 connectivity between devices for forwarding to work.

To display Bonjour forwarding policy information:

Procedure

Select Configuration → Services → Bonjour Gateway.
Select Forwarding Policy.
The screen displays the name of existing Bonjour forwarding policies.

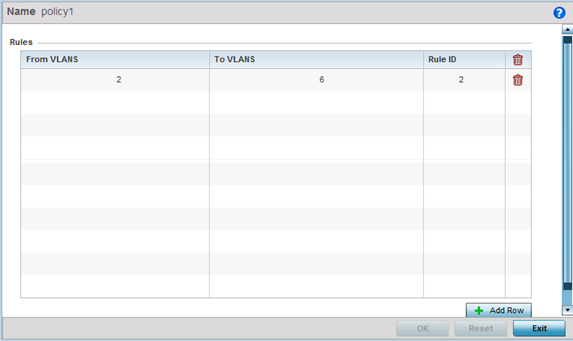

Bonjour Gateway - Forwarding Policy Screen
Select an existing policy and select Edit to modify its configuration or select Add to create a new configuration..

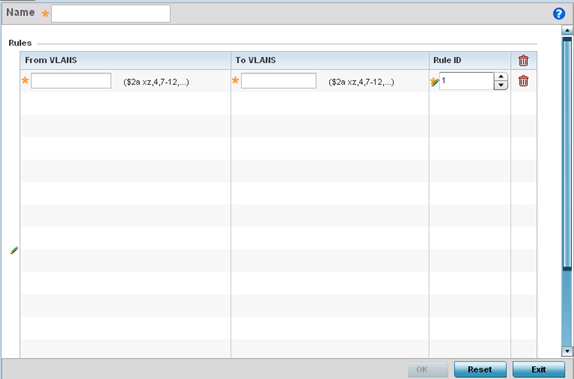

Bonjour Gateway - Forwarding Policy - Add Screen

Select the + Add Row button to add a forwarding rule to the Bonjour Forwarding Policy.

Advertisements from VLANs that contain services are forwarded to VLANs containing clients.


From VLANs	From VLANs are virtual interfaces where the Apple services are available. Enter a VLAN ID or a range of VLANs. Aliases can also be used.
To VLANs	To VLANs are virtual interfaces where clients for the services are available. Enter a VLAN ID or a range of VLANs. Aliases can also be used.
Rule ID	Use the spinner to set a unique rule ID (from 1 - 16) for this rule. This acts as numerical differentiator from other indexes.

Click OK to save updates to this Bonjour Gateway Forwarding policy.
Click Reset to revert the screen to its last saved configuration.
