Step-by-step instructions for installing and configuring Internet Authentication Service (IAS) with Microsoft Windows server 2008 (or earlier versions, Windows 2003 or 2000) can be obtained from
www.microsoft.com or your Microsoft documentation. Confer with your system or network administrator prior to configuration for any special needs your network environment may have.
Use the following information to configure the Internet Authentication Service for a device.
Note
This is not a complete presentation of steps.
In the
New RADIUS Client window, choose
RADIUS Standard from the
Client-Vendor menu.
Configure the
Dial-in Profile dialog box as follows:
Select the
Advanced tab.
Scroll to the bottom of the RADIUS Standard list, select
Vendor-Specific, and click
Add.
The
Multivalued Attribute Information dialog box appears.
Click
Add in the
Multivalued Attribute Information dialog box.
The
Vendor-Specific Attribute Information dialog box appears.
Enter the Extreme vendor code value.
Select
Yes. It conforms. and then click
Configure Attribute.
The
Configure VSA (RFC compliant) dialog box appears.
In the
Configure VSA (RFC compliant) dialog box, enter the following values and click
OK:
Vendor-assigned attribute number—Enter the value
1.
Attribute format—Enter the value
String.
The RADIUS server is now configured.
Example

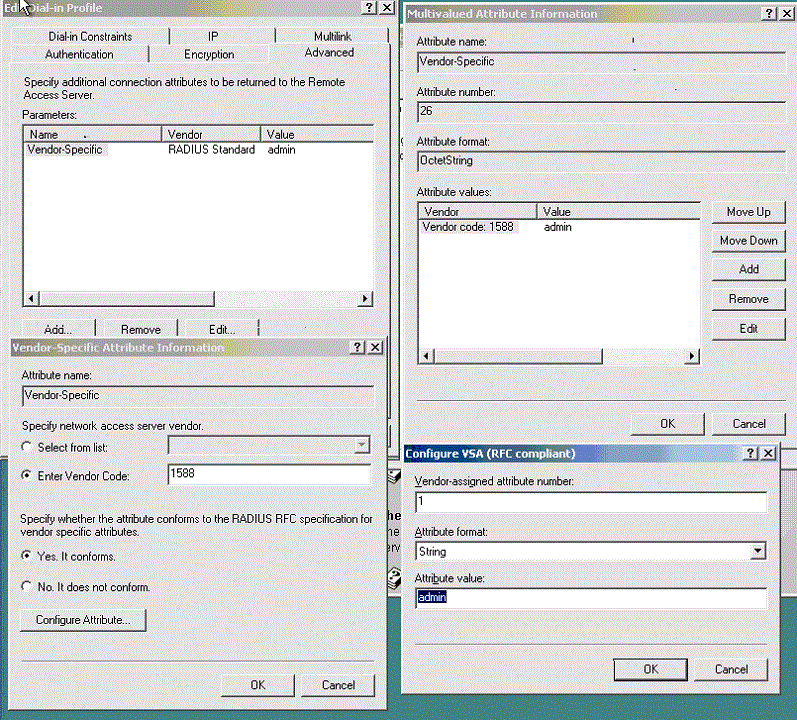

The following image shows the different screens configured in this task.
