For the discussion of the SLX MCT data plane,
refer to the following topology diagram.

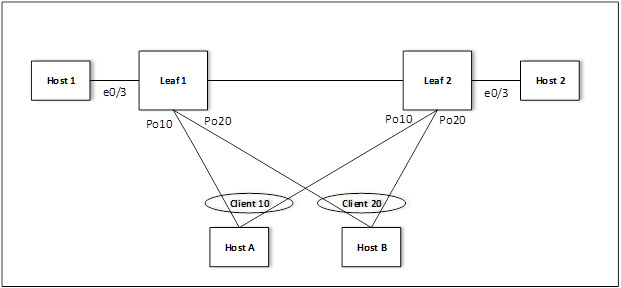

MCT data plane topology
example
Leaf 1 and Leaf 2 are MCT peers.
Host A and Host B are client nodes configured
with Client 10 and 20, respectively. They are connected to Leaf1 and Leaf2 through
cluster client edge ports (CCEPs) Po10 and Po20.
Host 1 and Host 2 are connected to edge ports and
are not dual homed. They are connected to Leaf1 and Leaf2 through cluster edge port
(CEP) Ethernet 0/3.
