Using a table-based tab

About this task

Change an existing configuration using a table-based tab. You cannot edit grey-shaded fields in the table. The following procedure is an illustration on how to use a table-based tab.

Note

Note

You can expand the appropriate folders for any feature you configure and select a table-based tab.

Procedure

  1. In the Device Physical View, select multiple ports.
  2. In the navigation pane, expand the Configuration > Edit > Port > General folders.
  3. Click the VLAN tab.

    The system displays a table-based tab with the VLAN information.

  4. Select a table-based tab.
  5. Double-click a white-shaded field to edit the value.

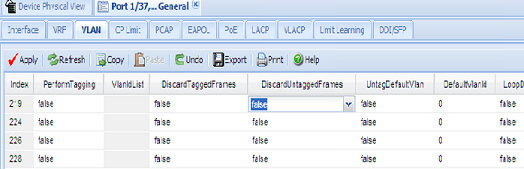

  6. Click the arrow in the list field to view the options, and then select the appropriate value.
    Click to expand in new window

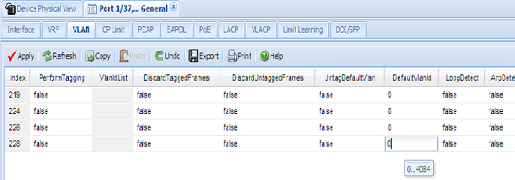

  7. In a text-entry field, double-click, and then edit the value.
    Click to expand in new window
  8. Click Apply to save the configuration changes.
9037342-00 Rev AD
