Configuring Eddystone-url Scan

The following APs offer integrated BLE/802.15.4 radios: AP3912i , AP3915i/e, AP3916ic, AP3917i/e/k.

To configure Eddystone-url Scan support from the IoT tab:

  1. From the top menu, click AP. The AP screen displays.
  2. Click the appropriate wireless AP in the list (not the check box). The AP dashboard displays.
  3. Click Configure. The AP Properties tab displays.
  4. Click the IoT tab, and select IoT Admin.
  5. From the Application field, select Eddystone-url Scan.
    Click to expand in new window

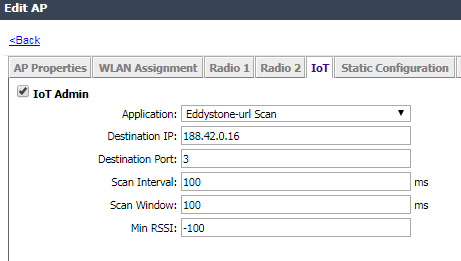

    Eddystone-url Scan Application
    Graphics/eddystone_url_scan_config.png
  6. Configure the following parameters:
Click to expand in new window

Eddystone-url Scan Settings

Field Description
Application Determines application type. Select Eddystone URL Scan
Destination IP Address IP address of the customer Application Server that receives the beacon report.
Destination Port Destination Port on the customer Application Server that presents the beacon report.
Scan Interval Determines how long to wait between scans. Valid values are: Min (100ms) and Max (10240ms). The default value is Min (100ms).
Scan Window Determines how long to scan per channel. Valid values are Min (100ms) and Max (10240ms).Value must be less than Scan Interval value. Default value is 100ms.
Min RSSI This is the signal strength required to include the packet in the BLE report. Valid values: -10 to -100. Default value is -100. Data from beacons with an RSSI that is less than the Min RSSI configured value is filtered out.
