In addition to the regular fixed ports, all 5420 Series switches have two SFP-DD Universal Ethernet ports that are reserved for advanced features (factory default). You can also use these ports as regular ports if you do not require these advanced features. For more information about using the advanced-feature-bandwidth-reservation boot flag to configure the functionality of these ports, see advanced-feature-bandwidth-reservation Boot Flag.
You can disable the advanced features on the 5420 Series and use the SFP-DD Universal Ethernet ports as Ethernet ports. When used as Ethernet ports, each port accepts one SFP+ with 10 Gbps port speed. When you insert an SFP+ in SFP-DD Universal Ethernet ports, only the first port obtained after channelization can be used.
Front panel ports 1/1-1/28, 1/29/1, and 1/30/1 can be used for traffic on the following switches:
Ports 1/29/2 and 1/30/2 are blocked from traffic.
Front panel ports 1/1-1/52, 1/53/1, and 1/54/1 can be used for traffic on the following switches:
Ports 1/53/2 and 1/54/2 are blocked from traffic.
Note
Product Notice: SFP-DD split DAC is not available in VOSS 8.4.
The following switches support the SFP-DD split DAC:
When the SFP-DD split DAC is used, SFP-DD ports can accept two SFP+ with 10 Gbps port speed and the first and second ports obtained after channelization can be used for traffic.
Important
5420 Series does not currently support MACsec in software.The following diagram illustrates the components of the front panel of the 5420F-8W-16P-4XE switch.
The front panel of the 5420F-8W-16P-4XE switch includes:
8 10/100/1000BASE-T full-duplex (FDX), half-duplex (HDX) 802.3bt Type 4 PoEMACsec-capable ports, 16 1000BASE-T FDX/HDX Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK, and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes two fixed fan modules, an AC power inlet connector, a power supply slot, and a grounding lug.

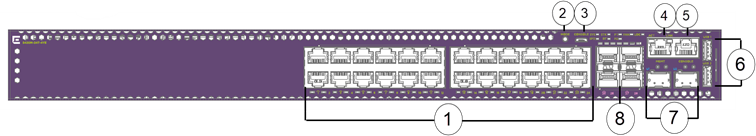

The following diagram illustrates the components of the front panel of the 5420F-24P-4XE switch.
The front pagel of the 5420F-24P-4XE switch includes:
24 10/100/1000BASE-T FDX/HDX 802.3bt Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes 2 fixed fan modules, an AC power inlet connector, a power supply slot, and a grounding lug.

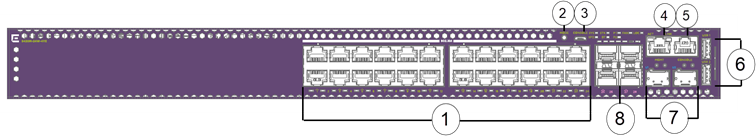

The following diagram illustrates the components of the front panel of the 5420F-24S-4XE switch.
The front panel of the 5420F-24S-4XE switch includes:
24 1000BASE-X SFP MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 10 Gbps SFP+ ports
The back panel (not shown) includes 2 fixed fan modules, an AC power inlet connector, a power supply slot, and a grounding lug.

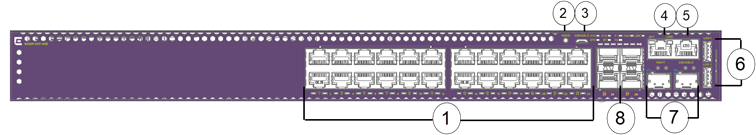

The following diagram illustrates the components of the front panel of the 5420F-24T-4XE switch.
The front panel of the 5420F-24T-4XE switch includes:
24 10/100/1000BASE-T FDX/HDX MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes 2 fixed fan modules, an AC power inlet connector, a power supply slot, and a grounding lug.

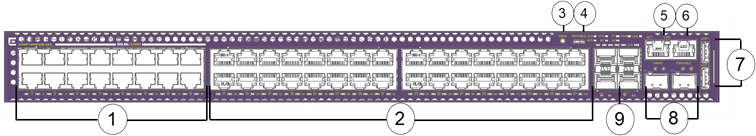

The following diagram illustrates the components of the front panel of the 5420F-16MW-32P-4XE switch.
The front panel of the 5420F-16MW-32P-4XE switch includes:
16 100Mb/1GB/2.5GB 802.3bt Type 4 PoE ports.
32 10/100/1000BASE-T FDX/HDX Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes three fixed fan modules, a power supply slot, an AC power inlet connector, and a grounding lug.

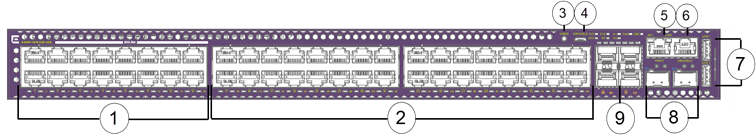

The following diagram illustrates the components of the front panel of the 5420F-16W-32P-4XE switch.
The front panel of the 5420F-16W-32P-4XE switch includes:
16 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports.
32 10/100/1000BASE-T FDX/HDX Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes three fixed fan modules, a power supply slot, an AC power inlet connector, and a grounding lug.

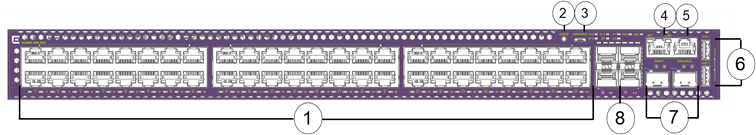

The following diagram illustrates the components of the front panel of the 5420F-48P-4XE switch.
The front panel of the 5420F-48P-4XE switch includes:
48 10/100/1000BASE-T FDX/HDX Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes three fixed fan modules, a power supply slot, an AC power inlet connector, and a grounding lug.

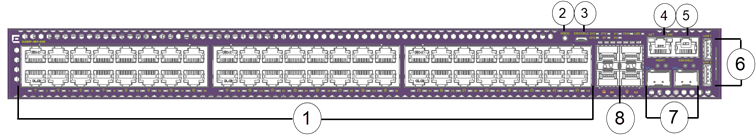

The following diagram illustrates the components of the front panel of the 5420F-48P-4XL switch.
The front panel of the 5420F-48P-4XL switch includes:
48 10/100/1000BASE-T FDX/HDX Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps LRM/MACsec-capable SFP+ ports
The back panel (not shown) includes three fixed fan modules, a power supply slot, an AC power inlet connector, and a grounding lug.

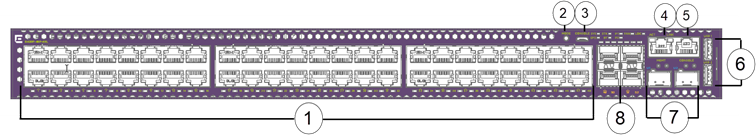

The following diagram illustrates the components of the front panel of the 5420F-48T-4XE switch.
The front panel of the 5420F-48T-4XE switch includes:
48 10/100/1000BASE-T FDX/HDX MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10 Gbps SFP+ ports
The back panel (not shown) includes two fixed fan modules, a power supply slot, an AC power inlet connector, and a grounding lug.

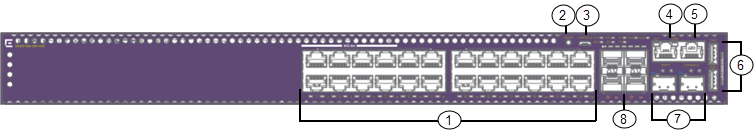

The following diagram illustrates the components of the front panel of the 5420M-24T-4YE switch.
The front panel of the 5420M-24T-4YE switch includes:
24 10/100/1000BASE-T FDX/HDX Type 2 MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10/25 Gbps SFP28 ports
The back panel (not shown) includes a removable fan module, two power supply slots, and a grounding lug.
The following diagram illustrates the components of the front panel of the 5420M-24W-4YE switch.
The front panel of the 5420M-24W-4YE switch includes:
24 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10/25 Gbps SFP28 ports
The back panel (not shown) includes a removable fan module, two power supply slots, and a grounding lug.

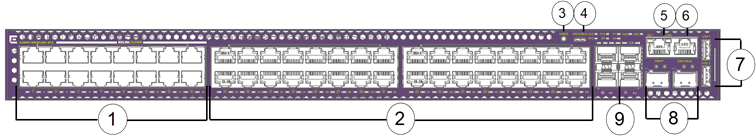

The following diagram illustrates the components of the front panel of the 5420M-16MW-32P-4YE switch.
The front panel of the 5420M-16MW-32P-4YE switch includes:
16 100Mb/1Gb/2/5Gb 802.3bt Type 4 PoE ports.
32 10/100/1000BASE-T FDX/HDX Type 2 PoE+ MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10/25 Gbps SFP28 ports
The back panel (not shown) includes a removable fan module, two power supply slots, and a grounding lug.

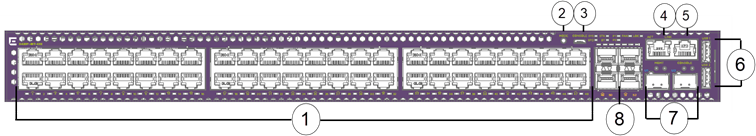

The following diagram illustrates the components of the front panel of the 5420M-48T-4YE switch.
The front panel of the 5420M-48T-4YE switch includes:
48 10/100/1000BASE-T FDX/HDX MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10/25 Gbps SFP28 ports
The back panel (not shown) includes a removable fan module, two power supply slots, and a grounding lug.
The following diagram illustrates the components of the front panel of the 5420M-48W-4YE switch.
The front panel of the 5420M-48W-4YE switch includes:
48 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE ports MACsec-capable ports.
Mode button for port LED control. Port LED mode indicators (SYS, SPD, STK and BT). Switch LEDs for system power (P1, P2), fan (FAN), and System Locator LED (LOC).
Note
VOSS only supports SYS and SPD LED mode indicators. STK and BT LED indicators remain off.1 Micro-B USB console port
1 RJ-45 out of band (OOB) management port
1 RJ-45 serial console port
2 Type-A USB ports
2 SFP-DD Universal Ethernet ports (labeled U1 and U2)
4 1/10/25 Gbps SFP28 ports
The back panel (not shown) includes a removable fan module, two power supply slots, and a grounding lug.
