Example PIM Configuration

PIM-SM Configuration with Bootstrap Router and Candidate RPs illustrates the PIM of four S- K- and 7100-Series routers. For a PIM-DM configuration:

The PIM-SM configuration is shown in the example scripts below. PIM-SM configuration includes configuring a preferred and a backup BSR for the topology, as well as two RPs for specific multicast groups and a backup RP for all groups.

Click to expand in new window

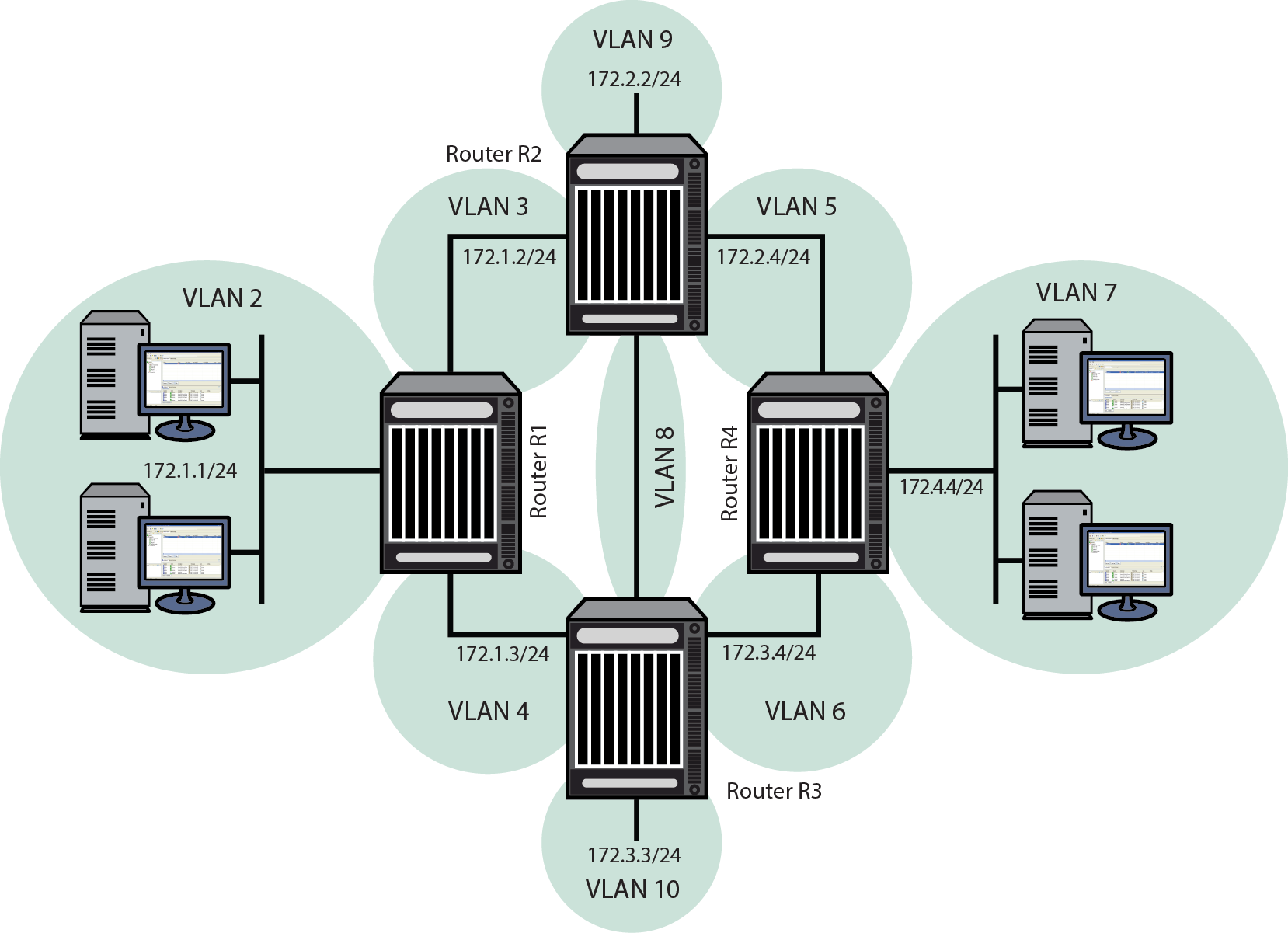

PIM-SM Configuration with Bootstrap Router and Candidate RPs
Graphics/fig_7.png

Router R1 Configuration

On this router, IGMP is enabled on VLAN 2, which connects to hosts, and PIM-SM is enabled on all interfaces. IGMP is used to determine host group membership on directly attached subnets. Note that IGMP is enabled in switch mode on S- K- and 7100-Series routers.

VLAN 2 is configured as the backup candidate RP for all multicast groups by using the default RP priority of 192. Note that the C-RP with the smallest priority value is elected.

Alternatively, you could configure a loopback interface as a candidate RP, to avoid the dependency on a particular interface.

R1(su-config)->router id 1.1.1.1
R1(su-config)->interface vlan 2
R1(su-config-intf-vlan.0.2)->ip address 172.1.1.1 255.255.255.0
R1(su-config-intf-vlan.0.2)->no shutdown
R1(su-config-intf-vlan.0.2)->exit
R1(su)->set igmp enable 2
R1(su)->set igmp enable 3
R1(su)->set igmp enable 4
R1(su)->set igmp query-enable 2
R1(su-config)->ip pim rp-candidate 172.1.1.1 224.0.0.0 240.0.0.0
R1(su-config)->interface vlan 2
R1(su-config-intf-vlan.0.2)->ip pim sparse-mode
R1(su-config-intf-vlan.0.2)->exit
R1(su-config)->interface vlan 3
R1(su-config-intf-vlan.0.3)->ip address 172.1.2.1 255.255.255.0
R1(su-config-intf-vlan.0.3)->no shutdown
R1(su-config-intf-vlan.0.3)->ip pim sparse-mode
R1(su-config-intf-vlan.0.3)->exit
R1(su-config)->interface vlan 4
R1(su-config-intf-vlan.0.4)->ip address 172.1.3.1 255.255.255.0
R1(su-config-intf-vlan.0.4)->no shutdown
R1(su-config-intf-vlan.0.4)->ip pim sparse-mode
R1(su-config-intf-vlan.0.4)->exit

Router R2 Configuration

On this router, PIM-SM is enabled on all interfaces. VLAN 9 is configured as a candidate BSR and is assigned a priority higher than the default of 0. Note that the C-BSR with the largest priority value is elected.

VLAN 9 is also configured as a candidate RP for the multicast group 224.2.2.0/24. Its priority is set to 2, which will most likely make it the elected RP for that particular group, since the C-RP with the smallest priority value is elected. (Note that Router R3 has an RP candidate priority value of 3 for that group.)

Again, alternatively, you could configure a loopback interface as a candidate BSR or RP, to avoid the dependency on a particular interface.

R2(su)->set igmp enable 3
R2(su)->set igmp enable 9
R1(su)->set igmp enable 8
R1(su)->set igmp enable 5
R2(su-config)->router id 1.1.1.2
R2(su-config)->ip pim bsr-candidate vlan 9 priority 2
R2(su-config)->interface vlan 3
R2(su-config-intf-vlan.0.3)->ip address 172.1.2.2 255.255.255.0
R2(su-config-intf-vlan.0.3)->no shutdown
R2(su-config-intf-vlan.0.3)->ip pim sparse-mode
R2(su-config-intf-vlan.0.3)->exit
R2(su-config)->interface vlan 9
R2(su-config-intf-vlan.0.9)->ip address 172.2.2.2 255.255.255.0
R2(su-config-intf-vlan.0.9)->no shutdown
R2(su-config-intf-vlan.0.9)->ip pim sparse-mode
R2(su-config-intf-vlan.0.9)->exit
R2(su-config)->ip pim rp-candidate 172.2.2.2 224.2.2.0 255.255.255.0 priority 2
R2(su-config)->interface vlan 8
R2(su-config-intf-vlan.0.8)->ip address 172.2.3.2 255.255.255.0
R2(su-config-intf-vlan.0.8)->no shutdown
R2(su-config-intf-vlan.0.8)->ip pim sparse-mode
R2(su-config-intf-vlan.0.8)->exit
R2(su-config)->interface vlan 5
R2(su-config-intf-vlan.0.5)->ip address 172.2.4.2 255.255.255.0
R2(su-config-intf-vlan.0.5)->no shutdown
R2(su-config-intf-vlan.0.5)->ip pim sparse-mode
R2(su-config-intf-vlan.0.5)->exit

Router R3 Configuration

On this router, PIM-SM is enabled on all interfaces. VLAN 10 is configured as a backup candidate BSR, by leaving its priority at the default of 0.

VLAN 10 is also configured as a backup candidate RP for multicast group 224.2.2.0/24, by setting its priority value slightly higher (3) than the priority configured on R2 for the same group (2) (since the C-RP with the smallest priority value is elected).

R3(su)->set igmp enable 4
R3(su)->set igmp enable 8
R3(su)->set igmp enable 10
R3(su)->set igmp enable 6
R3(su)->configure
R3(su-config)->router id 1.1.1.3
R3(su-config)->ip pim bsr-candidate vlan 10
R3(su-config)->interface vlan 4
R3(su-config-intf-vlan.0.4)->ip address 172.1.3.3 255.255.255.0
R3(su-config-intf-vlan.0.4)->no shutdown
R3(su-config-intf-vlan.0.4)->ip pim sparse-mode
R3(su-config-intf-vlan.0.4)->exit
R3(su-config)->interface vlan 8
R3(su-config-intf-vlan.0.8)->ip address 172.2.3.3 255.255.255.0
R3(su-config-intf-vlan.0.8)->no shutdown
R3(su-config-intf-vlan.0.8)->ip pim sparse-mode
R3(su-config-intf-vlan.0.8)->exit
R3(su-config)->interface vlan 10
R3(su-config-intf-vlan.0.10)->ip address 172.3.3.3 255.255.255.0
R3(su-config-intf-vlan.0.10)->no shutdown
R3(su-config-intf-vlan.0.10)->ip pim sparse-mode
R3(su-config-intf-vlan.0.10)->exit
R3(su-config)->ip pim rp-candidate 172.3.3.3 224.2.2.0 255.255.255.0 priority 3
R3(su-config)->interface vlan 6
R3(su-config-intf-vlan.0.6)->ip address 172.3.4.3 255.255.255.0
R3(su-config-intf-vlan.0.6)->no shutdown
R3(su-config-intf-vlan.0.6)->ip pim sparse-mode
R3(su-config-intf-vlan.0.6)->exit

Router R4 Configuration

This router does not play any special role in PIM-SM, except that it has hosts directly connected to it. IGMP is enabled on the interface that connects to hosts and PIM-SM is enabled on all interfaces.

R3(su)->set igmp enable 5
R3(su)->set igmp enable 6
R3(su)->set igmp enable 7
R3(su)->configure
R4(su-config)->router id 1.1.1.4
R4(su-config)#interface vlan 5
R4(su-config-intf-vlan.0.5)->ip address 172.2.4.4 255.255.255.0
R4(su-config-intf-vlan.0.5)->no shutdown
R4(su-config-intf-vlan.0.5)->ip pim sparse-mode
R4(su-config-intf-vlan.0.5)->exit
R4(su-config)->interface vlan 6
R4(su-config-intf-vlan.0.6)->ip address 172.3.4.4 255.255.255.0
R4(su-config-intf-vlan.0.6)->no shutdown
R4(su-config-intf-vlan.0.6)->ip pim sparse-mode
R4(su-config-intf-vlan.0.6)->exit
R4(su-config)->interface vlan 7
R4(su-config-intf-vlan.0.7)->ip address 172.4.4.4 255.255.255.0
R4(su-config-intf-vlan.0.7)->no shutdown
R4(su-config-intf-vlan.0.7)->ip pim sparse-mode
R4(su-config-intf-vlan.0.7)->exit
