Multi-User Authentication

Multi-user authentication provides for the per-user or per-device provisioning of network resources when authenticating. It supports the ability to receive from the authentication server:

• A policy traffic profile, based on the user account‘s RADIUS Filter-ID configuration
• A base VLAN-ID, based on the RFC 3580 tunnel attributes configuration, also known as dynamic VLAN assignment

When a single supplicant connected to an access layer port authenticates, a policy profile can be dynamically applied to all traffic on the port. When multi-user authentication is not implemented, and more than one supplicant is connected to a port, firmware does not provision network resources on a per-user or per-device basis. Different users or devices may require a different set of network resources. The firmware tracks the source MAC address for each authenticating user regardless of the authenticating protocol being used. Provisioning network resources on a per-user basis is accomplished by applying the policy configured in the RADIUS Filter-ID, or the base VLAN-ID configured in the RFC 3580 tunnel attributes, for a given user‘s MAC address. The RADIUS Filter-ID and tunnel attributes are part of the RADIUS user account and are included in the RADIUS Access-Accept message response from the authentication server.

The number of allowed users per port can be configured using the set multiauth port numusers command. See the set multiauth port command in the S-, K-, and 7100 Series CLI Reference Guide for the number of supported users per module. The show multiauth port command displays both the allowed number of users configured and the maximum number of users supported per port for the device. The allowed number of users defaults to the maximum number of supported users for the port.

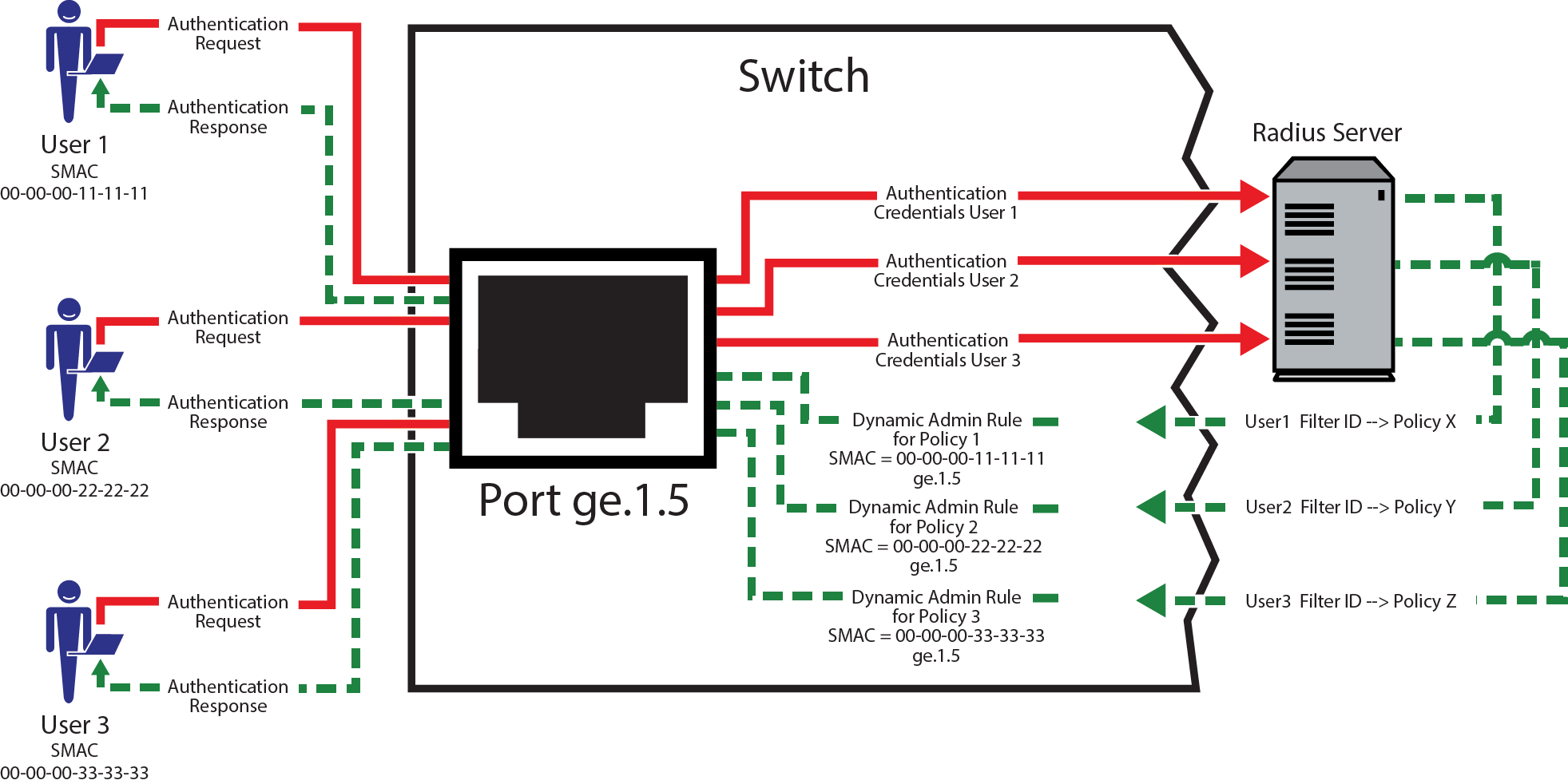

In Applying Policy to Multiple Users on a Single Port each user on port ge.1.5 sends an authentication request to the RADIUS server. Based upon the Source MAC address (SMAC), RADIUS looks up the account for that user and includes the Filter-ID associated with that account in the authentication response back to the switch (see section The RADIUS Filter-ID for Filter-ID information). The policy specified in the Filter-ID is then applied to the user. See section RFC 3580 for information on dynamic VLAN assignment and tunnel attribute configuration.
