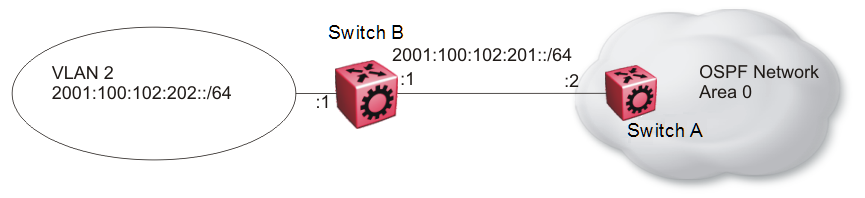

This section shows an example of OSPFv3 configuration. The following figure shows the network.
To complete the configuration, you must perform the following actions:
Configure an IPv6 VLAN (VLAN 2) with port member 1/1.
Configure an IPv6 brouter port (1/2).
Use IPv6 address 2001:100:102::/64.
Configure VLAN 2 and add port members.
vlan create 2 type port-mstprstp 0 vlan mlt 2 4 vlan members 2 1/1 portmember interface vlan 2 ipv6 interface ipv6 interface enable ipv6 interface address 2001:100:102:202:0:0:0:1/64 exit
Enable OSPFv3 on VLAN 2.
# IPV6 OSPF VLAN CONFIGURATION interface vlan 2 ipv6 ospf area 0.0.0.0 ipv6 ospf poll-interval 0 ipv6 ospf enable exit
Create brouter port 1/2 with IPv6 and OSPFv3.
interface gigabitethernet 1/2 ipv6 interface vlan 3999 ipv6 interface enable ipv6 interface address 2001:100:102:201:0:0:0:1/64 ipv6 ospf area 0.0.0.0 ipv6 ospf enable exit
Verification
The following example shows the Global Router example for OSPFv3 Area configuration:
Switch:1#show ipv6 ospf area
================================================================================
OSPF Area - GlobalRouter
================================================================================
AREA_ID STUB_AREA NSSA IMPORT_SUM TRANS_ROLE TRANS_STATE
--------------------------------------------------------------------------------
0.0.0.0 false false true always disabled
STUB_METRIC STUB_METRIC_TYPE SPF_RUNS BDR_RTR_CNT ASBDR_RTR_CNT LSA_CNT LSACK_SUM
--------------------------------------------------------------------------------
10 ospfV3Metric 0 0 0 0 0
The following example shows the VRF example for OSPFv3 Area configuration:
Switch:1#show ipv6 ospf area vrf vrf1
================================================================================
OSPF Area - VRF vrf1
================================================================================
AREA_ID STUB_AREA NSSA IMPORT_SUM TRANS_ROLE TRANS_STATE
--------------------------------------------------------------------------------
0.0.0.0 false false true candidate disabled
1.1.1.1 false false true candidate disabled
STUB_METRIC STUB_METRIC_TYPE SPF_RUNS BDR_RTR_CNT ASBDR_RTR_CNT LSA_CNT LSACK_SUM
--------------------------------------------------------------------------------
10 ospfV3Metric 3 0 0 0 0
10 ospfV3Metric 3 0 1 0 0
Switch:1#show ipv6 interface vlan 2
================================================================================
Vlan Ipv6 Interface
================================================================================
IF VLAN PHYSICAL ADMIN OPER TYPE MTU HOP REACH RETRAN MCAST IPSEC RPC RPC
INDX ABLE SMIT MODE
INDX ADDRESS STATE STATE LMT TIME TIME STATUS
--------------------------------------------------------------------------------
2070 2 00:24:7f: enable up ETHER 1500 64 30000 1000 disable disable exist
al:7a:06 only
================================================================================
Vlan Ipv6 Address
================================================================================
IPV6 ADDRESS VLAN-ID TYPE ORIGIN STATUS
--------------------------------------------------------------------------------
2001:100:102:202:0:0:0:1 V-2 UNICAST MANUAL PREFERRED
fe80:0:0:0:224:7fff:fea1:7a06 V-2 UNICAST LINKLAYER PREFERRED
1 out of 2 Total Num of Interface Entries displayed.
2 out of 5 Total Num of Address Entries displayed.
