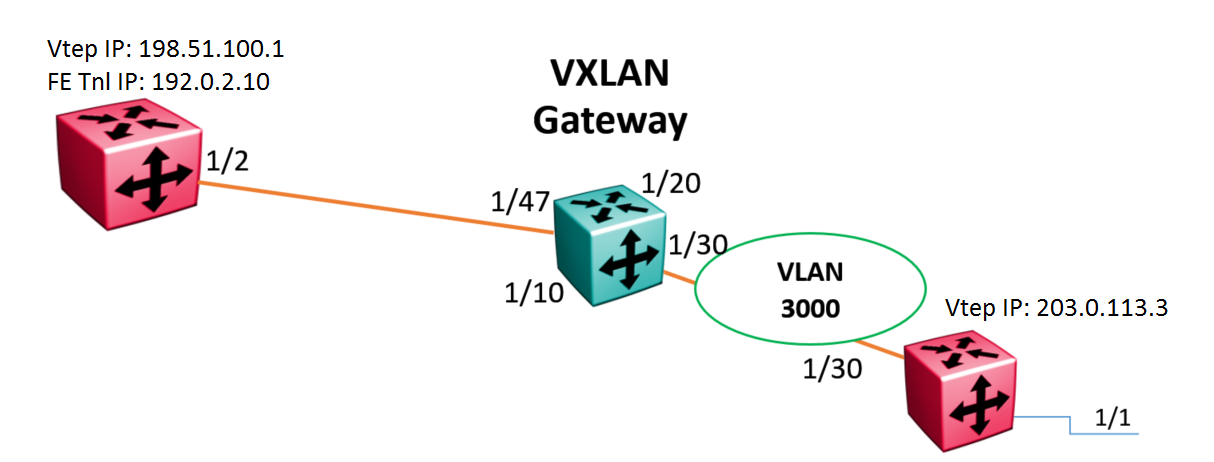

This example shows how to configure the VXLAN Gateway. Remember that there are two modes:
Base Interworking Mode is the default mode so there is no need to set the mode boot flag. However, you should use the show boot config flags command to verify that the vxlan-gw-full-interworking-mode is set to false.
Full Interworking Mode supports all SPB functionality including vIST and SMLT using an internal loopback. Full Interworking Mode is not the default mode. To configure Full Interworking mode, you must enable the vxlan-gw-full-interworking-mode boot flag.
Important
Changing the mode requires a reboot for the change to take effect, which can cause a loss of traffic.
# #SPBM CONFIGURATION # spbm spbm ethertype 0x8100 # #VLAN CONFIGURATION # vlan members remove 1 1/1,1/30,2/1/1,2/1/4 vlan create 3000 type port-mstprstp 0 vlan members 3000 1/30 portmember interface Vlan 3000 ip address 192.168.30.1 255.255.255.0 0 ip ospf enable exit # #PORT CONFIGURATION - PHASE II # interface GigabitEthernet 1/1 default-vlan-id 0 flex-uni enable # #CIRCUITLESS IP INTERFACE CONFIGURATION – GlobalRouter # interface loopback 1 ip address 1 203.0.113.3/255.255.255.255 ip ospf 1 exit # #VTEP CONFIGURATION # vtep source-ip 198.51.100.1 # #REMOTE VTEP CONFIGURATIONS # vtep 1 ip 203.0.113.3 # #OSPF CONFIGURATION - GlobalRouter # router ospf enable router ospf exit # #IP REDISTRIBUTION CONFIGURATION - GlobalRouter # router ospf redistribute direct redistribute direct enable exit # #I-SID CONFIGURATION # i-sid 300 elan c-vid 10 port 1/1 exit # #VNID CONFIGURATION # vnid 100 i-sid 300 vtep 1 exit # #IP REDISTRIBUTE APPLY CONFIGURATIONS # ip ospf apply redistribute direct
