Live View saves session frame data in a temporary file on your ADSP appliance. This process is called Frame Capture. You can than save the temporary file to a permanent file on the appliance or to a file on your workstation. To save a file, you must first stop the Live View session and then select from the Live View window to display the Save Frame Capture pop-up window.

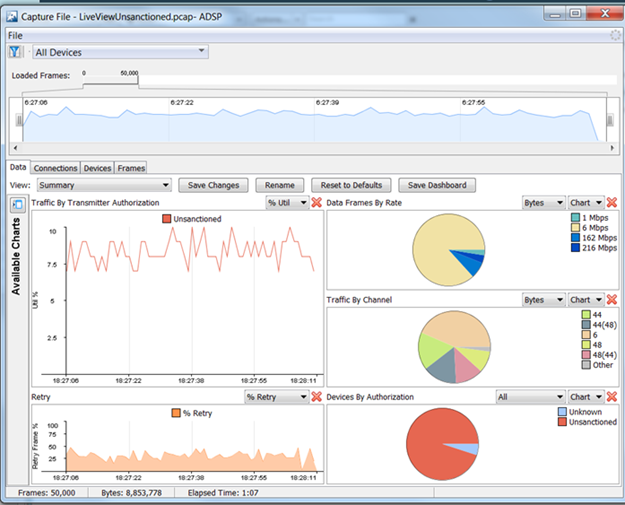

Once the file is saved in PCAP format, you can view it using Frame Capture Analysis. You can access this feature by selecting and then selecting the capture file. The frame data is displayed in the Capture File window.
The Capture File window is basically the same as the Live View window minus the buttons and menus that are not needed for Frame Capture Analysis. The tabs display the same information as the Live View window.
