External Relay Server

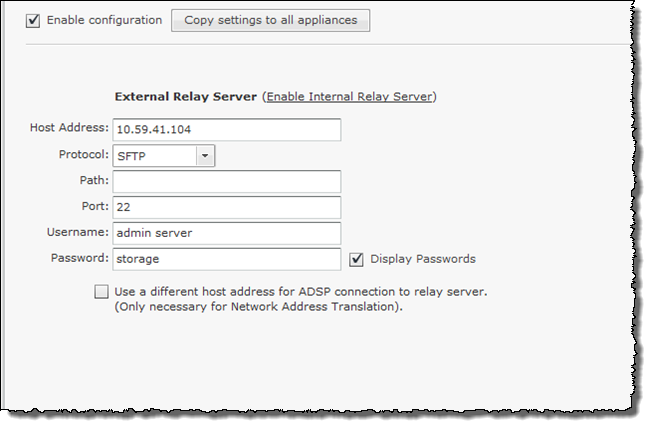

After selecting the Enable configuration checkbox, you will need to set up an external (or internal) server. The screen defaults to External Relay Server. Complete the fields to set up the External Relay Server .

Set the following values:

• Enter the Host name of the external relay server AirDefense uses to access and fetch device configurations. Normally, this is the IP address of the relay server.
• Select a protocol from the drop-down menu (FTP, TFTP, SFTP, SCP, HTTP, or HTTPS).
• Specify the Path AirDefense uses to download information. You should either leave the path blank or use root (/).
• The Port field is automatically populated.
• Create and enter a Username.
• Create and enter a Password. You have the option of having the password displayed.

You also have the option of using your own external relay serve; you will have to supply all vital information required for the server to work with AirDefense.

• Specify the Path AirDefense uses to download information. You should either leave the path blank or use root (/).
• Specify the Port AirDefense uses to connect to the External Relay Server.
• Enter the Username needed to update the External Relay Server used by AirDefense.
• Enter the Password required to update the External Relay Server used by AirDefense.

Once you are finished, click Apply.
