Dedicated Analysis

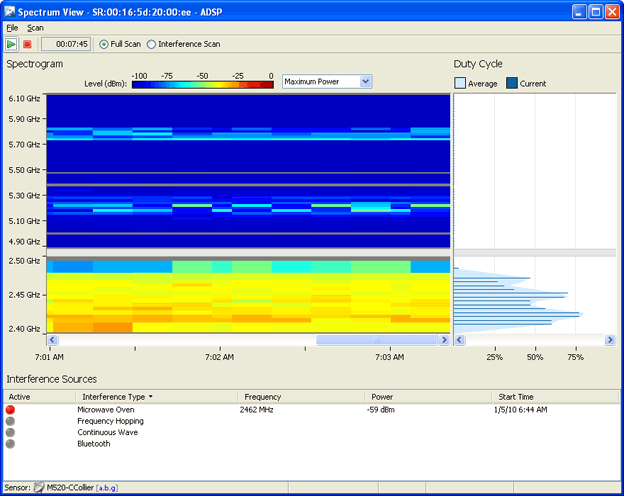

Dedicated analysis disables the normal scan pattern for a Sensor. Then, it conducts a detailed spectrum scan and displays the results in the Spectrum View window.

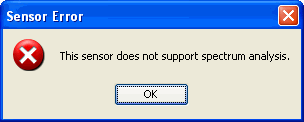

The Spectrum View window can only be accessed if the selected Sensor is licensed for Spectrum Analysis. If the Sensor does not support Spectrum Analysis, the following error popup is displayed:

In addition, if you attempt to run Spectrum Analysis on an AP configured for client access (device configured as AP and Sensor), the following error popup may display:

This usually will happen if you only have one radio turned on. If you continue, your wireless application may be disrupted but Spectrum Analysis will run.

To access the Spectrum View window, click the drop-down menu button for a Sensor and then select Spectrum Analysis from the drop-down menu.

Select File > Close to exit the Spectrum View window. You will be prompted to save the scan to an ADSP file. An ADSP file can be opened by navigating to Menu > Open > Spectrum Analysis.
