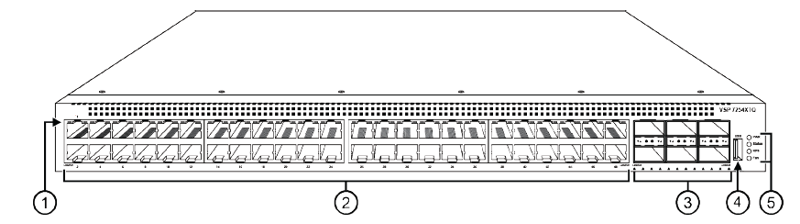

The following figure illustrates the front view of the VSP 7200 Series switch.
When looking at the front of the switch:
Slot 1 is the grouping of the 48 10 Gbps ports on the left.
Slot 2 is the grouping of the 6 40 Gbps ports on the right.
LEDs indicating port activity are above the RJ-45 and SFP+ port. The up arrow on the left indicates the top port; the down arrow on the right indicates the bottom port.
48 ports — The VSP 7254XSQ has 48 SFP/SFP+ fiber ports. The VSP 7254XTQ has 48 RJ-45 copper ports.
Six QSFP+ ports — The LEDs are below each port. There are four LEDs per port to support channelization. The up arrows refer to the port above.
USB port.
LEDs for system power (PWR), switch status (Status), redundant power supply (RPS), and fan modules (Fan).
