Fabric Extend

Table 1. Fabric Extend product support

Feature

Product

Release introduced

For configuration details, see VOSS User Guide.

Fabric Extend

*Platforms require an Open Networking Adapter (ONA).

5520 Series

VOSS 8.2.5

VSP 4450 Series

VOSS 5.0*

VSP 4900 Series

VOSS 8.1

VSP 7200 Series

VOSS 5.0

VSP 7400 Series

VOSS 8.0

VSP 8200 Series

VOSS 5.0

VSP 8400 Series

VOSS 5.0

VSP 8600 Series

Not Supported

XA1400 Series

VOSS 8.0.50

Fabric Extend over IPsec

5520 Series

Not Supported

VSP 4450 Series

Not Supported

VSP 4900 Series

VOSS 8.3 through Fabric IPsec Gateway

VSP 7200 Series

Not Supported

VSP 7400 Series

VOSS 8.2 through Fabric IPsec Gateway

VSP 8200 Series

Not Supported

VSP 8400 Series

Not Supported

VSP 8600 Series

Not Supported

XA1400 Series

VOSS 8.0.50

Digital Certificate Authentication for Fabric Extend over IPsec

5520 Series

Not Supported

VSP 4450 Series

Not Supported

VSP 4900 Series

VOSS 8.3 through Fabric IPsec Gateway

VSP 7200 Series

Not Supported

VSP 7400 Series

VOSS 8.3 through Fabric IPsec Gateway

VSP 8200 Series

Not Supported

VSP 8400 Series

Not Supported

VSP 8600 Series

Not Supported

XA1400 Series

VOSS 8.3

ECMP support for Fabric Extend

5520 Series

VOSS 8.2.5

VSP 4450 Series

Not Supported

VSP 4900 Series

Not Supported

VSP 7200 Series

VOSS 6.0

VSP 7400 Series

VOSS 8.0

VSP 8200 Series

VOSS 6.0

VSP 8400 Series

VOSS 6.0

VSP 8600 Series

Not Supported

XA1400 Series

VOSS 8.0.50

Some hardware platforms support Fabric Extend natively. You can use these switches in a main office of a hub and spoke deployment or to connect one Data Center to another Data Center.

The VSP 4450 Series also supports Fabric Extend, but the switch must be connected to an Open Networking Adapter (ONA) because the VSP 4450 Series does not support Fabric Extend natively. The ONA enables the VSP 4450 Series to support Fabric Extend. The VSP 4450 Series uses the ONA to encapsulate Fabric Connect traffic. For example, you can use the VSP 4450 Series in a branch office of a hub and spoke deployment.

Note

Note

In a Layer 2 core Fabric Extend solution, the VSP 4450 Series does not require an ONA because the tunnels are point-to-point VLAN connections, not VXLAN. Therefore, there is no need for an ONA to encapsulate a VXLAN header to SPB packets.

Fabric Extend enables Enterprises to extend the Fabric Connect technology over Layer 2 or Layer 3 core networks. The logical IS-IS interface, which is discussed in detail later in this chapter, is the mechanism that enables Fabric Extend to connect SPB fabric nodes. Logical IS-IS interfaces create virtual tunnels and encapsulate SPB traffic by adding a Virtual Extensible LAN (VXLAN) header to SPB packets.

The following figure illustrates two Fabric Connect “islands” separated by a third-party core IP network. The IP network could be third-party equipment in an enterprise or a service provider‘s infrastructure such as an MPLS VPN service.

Click to expand in new window

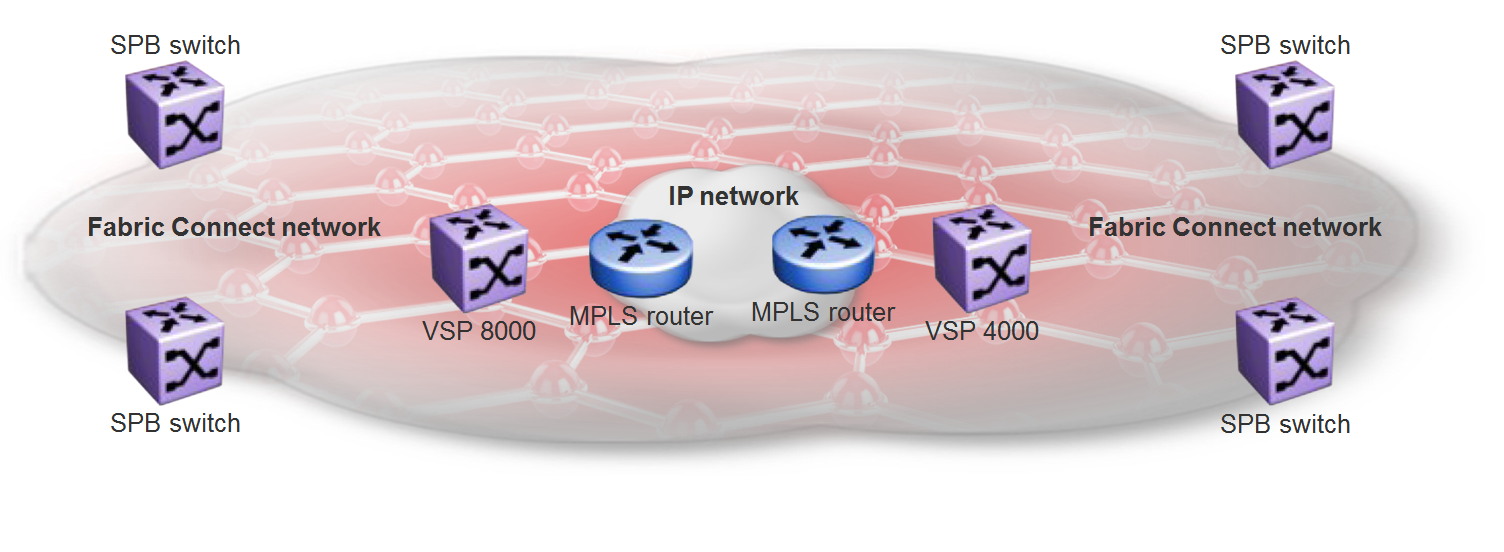

Fabric Connect networks connected by an IP network

The following figure illustrates how Fabric Extend enables you to connect the fabric islands to create ONE Fabric Connect network. This figure shows a layer 3 core network where Fabric Extend uses IP tunneling by adding a VXLAN header to the SPBM packets. This can be over a third party IPv4 transport network such as MPLS IP-VPN or in a Campus IP backbones.

Click to expand in new window

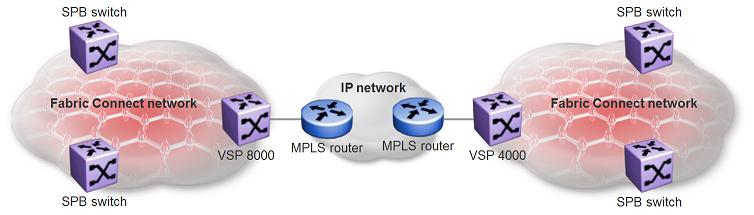

Single Fabric Connect Domain realized using Fabric Extend

The following figure shows a layer 2 core network where Fabric Extend can transport SPBM packets over a layer 2 MPLS VPLS or PBB E-LINE service by creating layer 3 tunnels over a layer 2 third party network.

Click to expand in new window

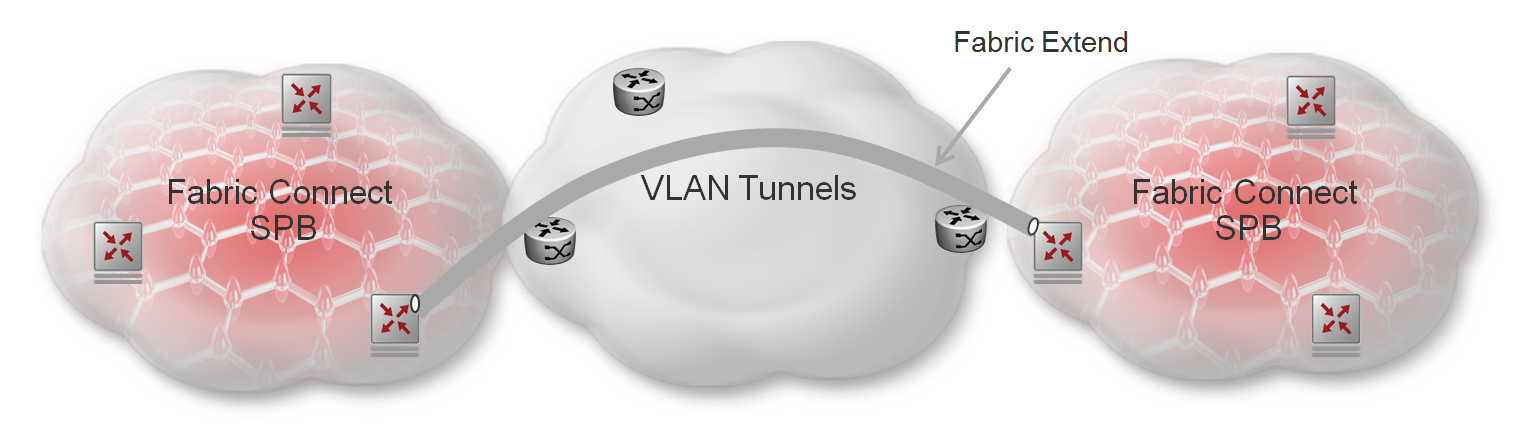

Fabric Extend over VLAN tunnels

What are the advantages of connecting Fabric Connect networks?

Fabric Connect is an Ethernet-based, industry-standard (IEEE 802.1aq) networking virtualization solution. With Fabric Connect, you can have thousands of virtualized service instances at any point in the network. Other Fabric Connect advantages include rapid time to service, Layer 2 and Layer 3 Unicast and IP Multicast virtualization, and scalable IP multicast. But the most significant advantage of Fabric Connect is that you provision services at the network edge only, not the core.

The Fabric Extend feature enables you to extend the Fabric Connect model. This allows Enterprises to extend Fabric Connect technology over Layer 2 and Layer 3 core networks. The interconnection of Fabric Connect deployments can be over any IP-based network whether it‘s a campus backbone, Data Center, or a MAN/WAN IP MPLS network.
