E-Tree and Private VLAN topology

Table 1. E-Tree and Private VLANs product support

Feature

Product

Release introduced

For configuration details, see VOSS User Guide.

E-Tree and Private VLANs

5520 Series

VOSS 8.2.5

VSP 4450 Series

VSP 4000 4.0

VSP 4900 Series

VOSS 8.1

VSP 7200 Series

VOSS 4.2.1

VSP 7400 Series

VOSS 8.0

VSP 8200 Series

VOSS 4.1

VSP 8400 Series

VOSS 4.2

VSP 8600 Series

Not Supported

XA1400 Series

Not Supported

Ethernet Private Tree (E-Tree) extends Shortest Path Bridging MAC (SPBM) to Private VLANs (PVLAN).

Transport within the SPBM network is achieved by associating the private VLAN with an I-SID. Flooded traffic from both promiscuous and isolated devices is transported over the same I-SID multicast tree and suppression for spoke-to-spoke traffic is done on the egress SPB Backbone Edge Bridge (BEB). This means the Private VLAN IDs are globally significant and must be the same on all BEBs

The following list provides details for E-Tree and Private VLAN topology:
  • E-Tree associates a Private VLAN with an I-SID.
    Note

    Note

    The same I-SID could be attached to a regular VLAN. In that case, all ports on the regular VLAN behave like Promiscuous ports on the PVLAN.

  • Other SPB BEBs can associate a regular CVLAN to the same I-SID that E-Tree uses.
    Note

    Note

    The CVLAN ID must match the primary PVLAN ID.

  • CVLAN devices assigned to the same I-SID that E-Tree uses have Promiscuous connectivity within the segment.

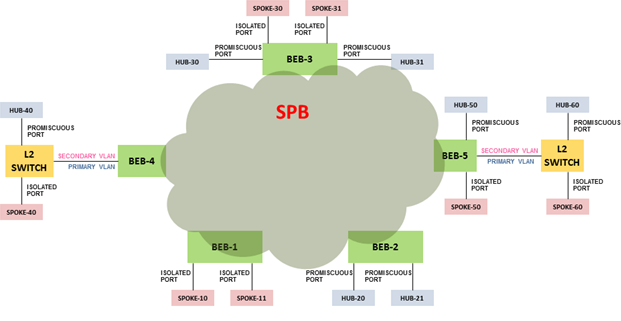

The following figure shows a basic E-Tree network topology consisting of groups of private VLANs connected by the SPBM core network.

Click to expand in new window
Sample E-Tree configuration

Private VLAN port types

The private VLAN port type is isolated, promiscuous, or trunk. If the port is a member of an MLT, then the port inherits the private VLAN type of the MLT.

In terms of network topology, the isolated port is considered a spoke. The isolated port, or spoke, does not communicate with any other isolated port in the network. The isolated port only communicates with the promiscuous ports, or hubs.

E-Tree and Private VLAN limitations

The following limitations apply to E-Tree and Private VLAN topology:
  • A port that is of Private VLAN type trunk must be tagged. Isolated and Promiscuous Private VLAN ports can be either tagged or untagged.

  • When a port or MLT that has a Private VLAN type set to Isolated or Promiscuous is added to a private VLAN, if that port is used by other non private VLANs, then those non private VLANs are removed.

  • A port which is Private VLAN type Isolated and is tagged can belong to only one Private VLAN.
