SPBM configuration examples

This section provides configuration examples to configure basic SPBM and IS-IS infrastructure.

Examples and network illustrations in this document may illustrate only one of the supported platforms. Unless otherwise noted, the concept illustrated applies to all supported platforms.

Basic SPBM configuration example

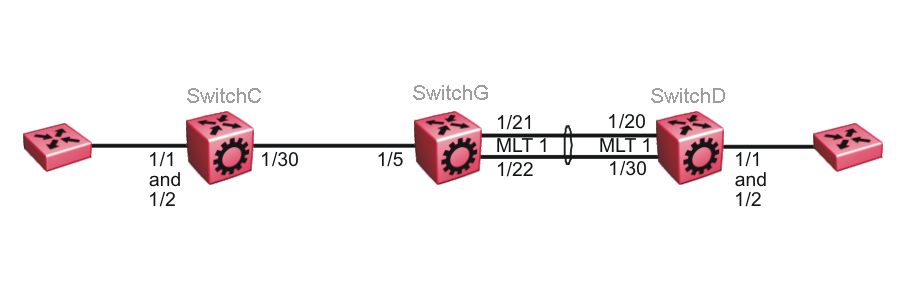

The following figure shows a sample greenfield deployment for SPBM.

Click to expand in new window
Greenfield SPBM deployment
Note

Note

For migration purposes, SPBM can coexist with existing SMLT configurations.

Ethernet and MLT configuration

The following sections show the steps required to configure the Ethernet and MLT interfaces in this example.

SwitchC

PORT CONFIGURATION - PHASE 1

interface GigabitEthernet 1/30
encapsulation dot1q
exit

SwitchG

PORT CONFIGURATION - PHASE 1

interface GigabitEthernet 1/5
encapsulation dot1q
exit

MLT CONFIGURATION

mlt 1 enable
mlt 1 member 1/21-1/22
mlt 1 encapsulation dot1q

SwitchD

MLT CONFIGURATION

mlt 1 enable
mlt 1 member 1/20,1/30
mlt 1 encapsulation dot1q

IS-IS SPBM global configuration

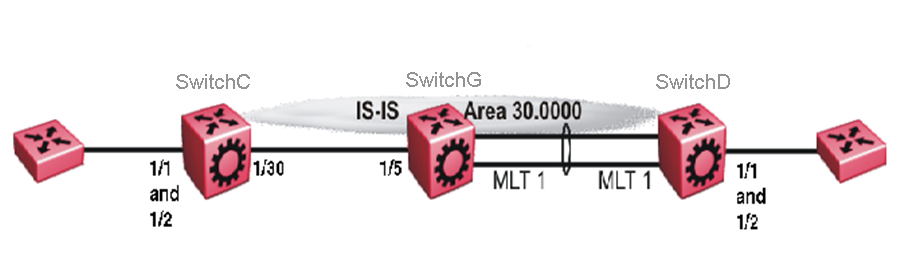

The following figure shows the IS-IS area information added to the network.

Click to expand in new window
IS-IS SPBM global

The following sections show the steps required to configure the global IS-IS SPBM parameters in this example.

SwitchC

enable
configure terminal
prompt SwitchC

BOOT CONFIGURATION

spbm
spbm ethertype 0x8100

ISIS SPBM CONFIGURATION

router isis
spbm 1
spbm 1 nick-name f.30.13
spbm 1 b-vid 20

ISIS CONFIGURATION

is-type l1
manual-area 30.0000
sys-name SwitchC
exit
router isis enable

VLAN CONFIGURATION

vlan create 20 name "B-VLAN" type spbm-bvlan

SwitchG

enable
configure terminal
prompt SwitchG

BOOT CONFIGURATION

spbm
spbm ethertype 0x8100

ISIS SPBM CONFIGURATION

router isis
spbm 1
spbm 1 nick-name f.30.10
spbm 1 b-vid 20

ISIS CONFIGURATION

is-type l1
manual-area 30.0000
sys-name SwitchG
exit
router isis enable

VLAN CONFIGURATION

vlan create 20 name "B-VLAN" type spbm-bvlan

SwitchD

enable
configure terminal
prompt SwitchD

BOOT CONFIGURATION

spbm
spbm ethertype 0x8100

ISIS SPBM CONFIGURATION

router isis
spbm 1
spbm 1 nick-name f.30.14
spbm 1 b-vid 20


ISIS CONFIGURATION

is-type l1
manual-area 30.0000
sys-name SwitchD
exit
router isis enable

VLAN CONFIGURATION

vlan create 20 name "B-VLAN" type spbm-bvlan

IS-IS SPBM Interface Configuration

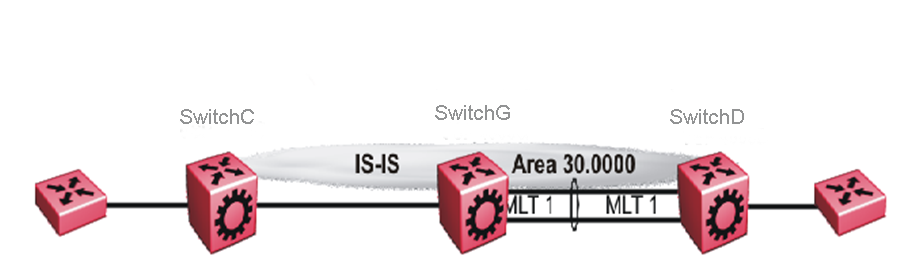

The following figure shows the IS-IS area information and interfaces in the network.

Click to expand in new window
IS-IS SPBM interface

The following sections show the steps required to configure the IS-IS SPBM interfaces in this example.

SwitchC

PORT CONFIGURATION - PHASE II

interface GigabitEthernet 1/30
isis
isis spbm 1
isis enable
exit

SwitchG

PORT CONFIGURATION - PHASE II

interface GigabitEthernet 1/5
isis
isis spbm 1
isis enable
exit

MLT INTERFACE CONFIGURATION

interface mlt 1
isis
isis spbm 1
isis enable
exit

SwitchD

MLT INTERFACE CONFIGURATION

interface mlt 1
isis
isis spbm 1
isis enable
exit

Verifying SPBM operations

Checking operation — SwitchC

The following sections show the output from verifying the sample IS-IS SPBM configuration.

SwitchC:1# show isis interface
================================================================================
                                ISIS Interfaces
================================================================================
IFIDX      TYPE    LEVEL     OP-STATE  ADM-STATE  ADJ    UP-ADJ  SPBM-L1-METRIC
--------------------------------------------------------------------------------
Port1/30   pt-pt   Level 1   UP        UP         1      1       10

SwitchC:1# show isis adjacencies
================================================================================================
                               ISIS Adjacencies
================================================================================================
INTERFACE         L STATE        UPTIME PRI HOLDTIME SYSID             HOST-NAME     STATUS
------------------------------------------------------------------------------------------------
Port1/30          1 UP         1d 19:19:52       22 beb0.0000.7204    SwitchC       ACTIVE

--------------------------------------------------------------------------------
 1 out of 1 interfaces have formed an adjacency
--------------------------------------------------------------------------------

SwitchC:1# show isis spbm unicast-fib
================================================================================
                          SPBM UNICAST FIB ENTRY INFO
================================================================================
DESTINATION 	    BVLAN  SYSID          HOST-NAME   OUTGOING-INTERFACE  COST
ADDRESS
--------------------------------------------------------------------------------
00:0e:62:25:a3:df  4000   000e.6225.a3df  SwitchG     1/30
00:14:0d:a0:13:df  4000   0014.0da0.13df  SwitchD     1/30

--------------------------------------------------------------------------------
 Total number of SPBM UNICAST FIB entries 2
--------------------------------------------------------------------------------

SwitchC:1# show isis spbm unicast-tree 4000
Node:000e.6225.a3df.00 (SwitchG) -> ROOT
Node:0014.0da0.13df.00 (SwitchD) -> Node:000e.6225.a3df.00 (SwitchG) ->
ROOT


Checking operation — SwitchG

SwitchG:1# show isis interface
================================================================================
                                ISIS Interfaces
================================================================================
IFIDX      TYPE    LEVEL     OP-STATE  ADM-STATE  ADJ    UP-ADJ  SPBM-L1-METRIC
--------------------------------------------------------------------------------
Port1/5    pt-pt  Level 1   UP        UP         1      1        10
Mlt1       pt-pt  Level 1   UP        UP         1      1        10

SwitchG:1# show isis adjacencies
====================================================================================
                                ISIS Adjacencies
====================================================================================
INTERFACE L STATE   UPTIME      PRI HOLDTIME SYSID             HOST-NAME    STATUS
------------------------------------------------------------------------------------
Port1/5   1 UP      1d 19:19:52 127 26       beb0.0000.7204    SwitchC      ACTIVE
Mlt1      1 UP      04:57:34    127 20       0014.0da0.13df    SwitchD      ACTIVE
--------------------------------------------------------------------------------
 2 out of 2 interfaces have formed an adjacency
--------------------------------------------------------------------------------

SwitchG:1# show isis spbm unicast-fib
================================================================================
                          SPBM UNICAST FIB ENTRY INFO
================================================================================
DESTINATION ADDRESS  BVLAN  SYSID          HOST-NAME   OUTGOING-INTERFACE		COST
--------------------------------------------------------------------------------
00:14:0d:a0:13:df    4000   0014.0da0.13df SwitchD           MLT-1
00:15:e8:9f:e3:df    4000   0015.e89f.e3df SwitchC           1/5

SwitchG:1# show isis spbm unicast-tree 4000
Node:0015.e89f.e3df.00 (SwitchC) -> ROOT
Node:0014.0da0.13df.00 (SwitchD) -> ROOT

Checking operation — SwitchD

SwitchD:1# show isis interface
================================================================================
                                ISIS Interfaces
================================================================================
IFIDX      TYPE    LEVEL     OP-STATE  ADM-STATE  ADJ    UP-ADJ  SPBM-L1-METRIC
--------------------------------------------------------------------------------
Mlt1       pt-pt   Level 1   UP        UP         1      1       10

SwitchD:1# show isis adjacencies
================================================================================================
                                ISIS Adjacencies
================================================================================================
INTERFACE         L STATE        UPTIME PRI HOLDTIME SYSID             HOST-NAME     STATUS
------------------------------------------------------------------------------------------------
Mlt1              1 UP         05:03:59 127       21 000e.6225.a3df    SwitchG       ACTIVE
--------------------------------------------------------------------------------
 1 out of 1 interfaces have formed an adjacency
--------------------------------------------------------------------------------
SwitchD:1# show isis spbm unicast-fib
================================================================================
                          SPBM UNICAST FIB ENTRY INFO
================================================================================
DESTINATION ADDRESS  BVLAN  SYSID          HOST-NAME   OUTGOING-INTERFACE COST
--------------------------------------------------------------------------------
00:0e:62:25:a3:df    4000   000e.6225.a3df SwitchG   MLT-1
00:15:e8:9f:e3:df    4000   0015.e89f.e3df SwitchC   MLT-1

SwitchD:1# show isis spbm unicast-tree 4000
Node:000e.6225.a3df.00 (SwitchG) -> ROOT
Node:0015.e89f.e3df.00 (SwitchC) -> Node:000e.6225.a3df.00 (SwitchG) ->
ROOT
