5520 Series

The following diagrams illustrate the components on the front panels of the 5520 Series switches.

Note

Note

In addition to the regular fixed ports, all 5520 Series switches have two QSFP28/QSFP+ Universal Ethernet ports that are reserved for advanced features (factory default). You can also use these ports as regular ports if you do not require these advanced features. For more information about using the advanced-feature-bandwidth-reservation boot flag to configure the functionality of these ports, see advanced-feature-bandwidth-reservation Boot Flag.

When used as regular ports, the port speed is 40 Gbps as a single channel port. Although the maximum supported single channel port speed is 40 Gbps, the ports can be channelized to operate as four 10 or 25 Gbps channels.

For information about supported VIM modules, see ExtremeSwitching 5520 Series Hardware Installation Guide.

5520-24T

The following diagram illustrates the components of the front panel of the 5520-24T switch. Slot 1 is used for the 24 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-24T

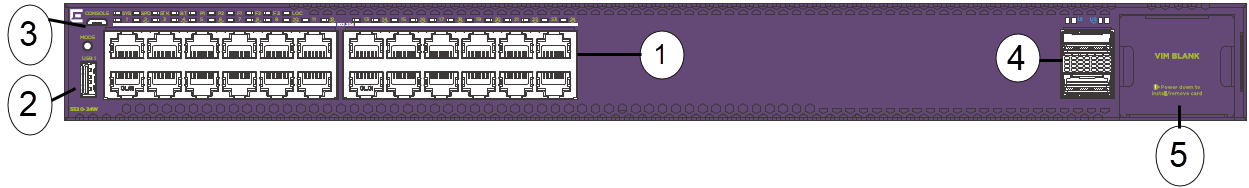

Front panel view of 5520-24T switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 24 10/100/1000BASE-T full-duplex (FDX), half-duplex (HDX), MACsec-capable ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

5520-24W

The following diagram illustrates the components of the front panel of the 5520-24W switch. Slot 1 is used for the 24 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-24W

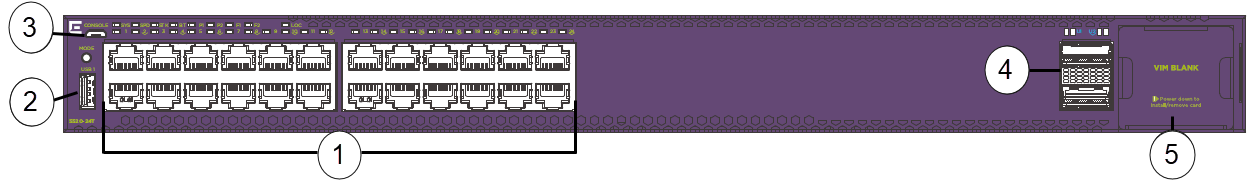

Front panel view of 5520-24W switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 24 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

5520-48T

The following diagram illustrates the components of the front panel of the 5520-48T switch. Slot 1 is used for the 48 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-48T

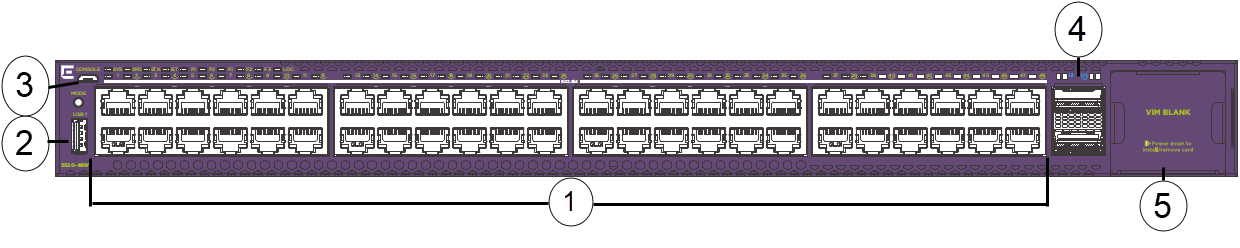

Front panel view of 5520-48T switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 48 10/100/1000BASE-T FDX/HDX MACsec-capable ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

5520-48W

The following diagram illustrates the components of the front panel of the 5520-48W switch. Slot 1 is used for the 48 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-48W

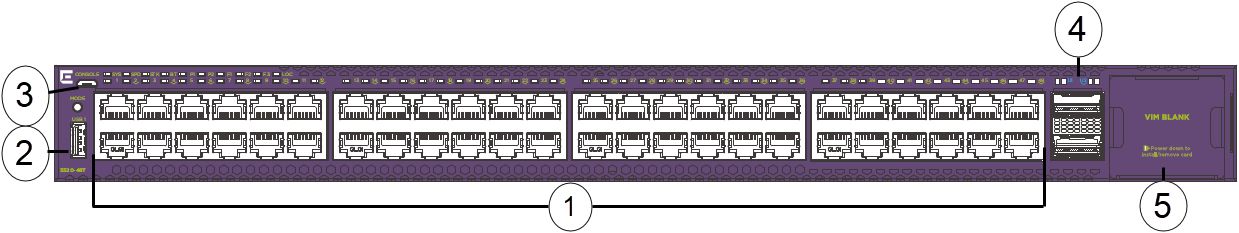

Front panel view of 5520-48W switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 48 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

5520-12MW-36W

The following diagram illustrates the components of the front panel of the 5520-12MW-36W switch. Slot 1 is used for the 48 copper ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-12MW-36W

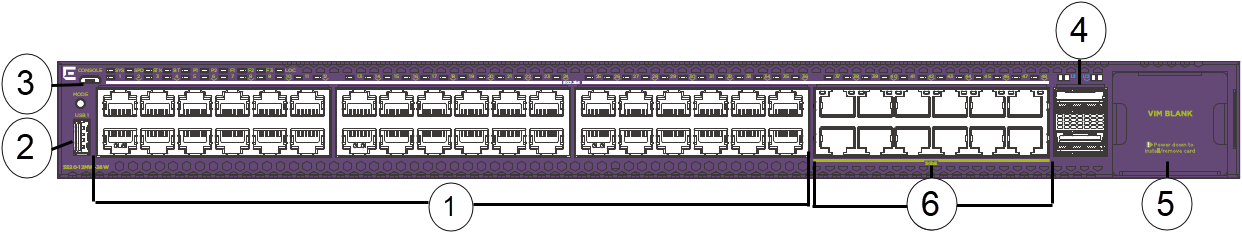

Front panel view of 5520-12MW-36W switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 36 10/100/1000BASE-T FDX/HDX 802.3bt Type 4 PoE MACsec-capable ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

  6. 12 100 Mbps/1 Gbps/2.5 Gbps/5 Gbps 802.3bt Type 4 PoE MACsec-capable ports

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

5520-24X

The following diagram illustrates the components of the front panel of the 5520-24X switch. Slot 1 is used for the 24 SFP+ ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-24X

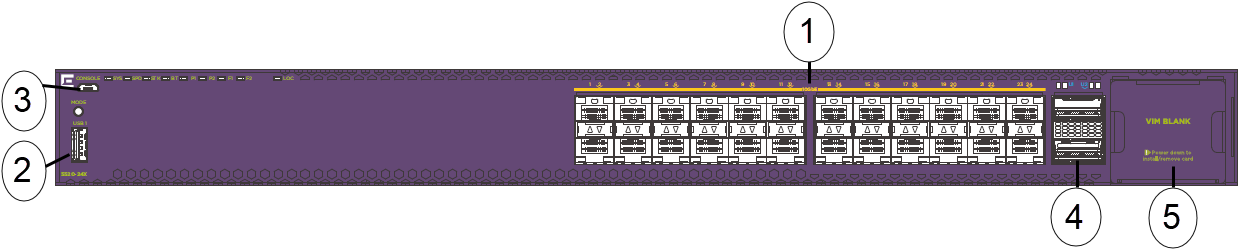

Front panel view of 5520-24X switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 24 100/1000BASE-X/10GBASE-X SFP+ ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.

5520-48SE

The following diagram illustrates the components of the front panel of the 5520-48SE switch. Slot 1 is used for the 48 SFP ports and the two QSFP28/QSFP+ ports, and slot 2 is used for Versatile Interface Module (VIM) ports, if a VIM is installed in the VIM slot.

Click to expand in new window
5520-48SE

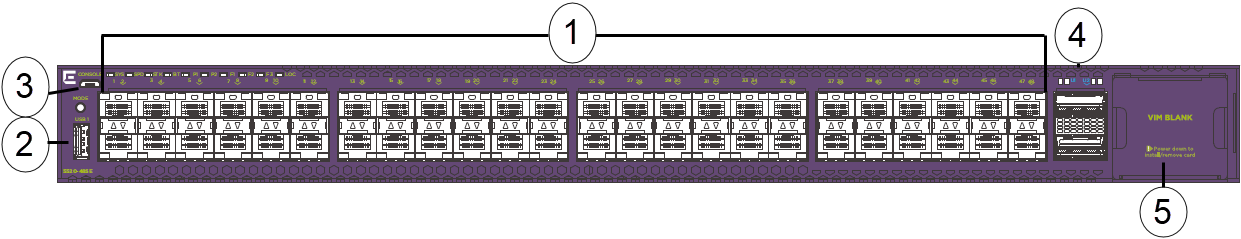

Front panel view of 5520-48SE switch showing fixed ports, USB port, LEDs, and VIM slot.
  1. 48 100/1000BASE-X MACsec-capable SFP ports

  2. 1 USB A port

  3. 1 USB micro B management port

  4. 2 Universal Ethernet QSFP28 ports

  5. VIM slot (shown with VIM covered). Port numbering depends on the type of VIM installed in the slot.

The back panel (not shown) includes an RJ-45 out of band (OOB) management port, an RJ-45 console port, a USB A port, locator LED, two PSU slots, and hot-swappable fan units.
