Configuring a DvR solution

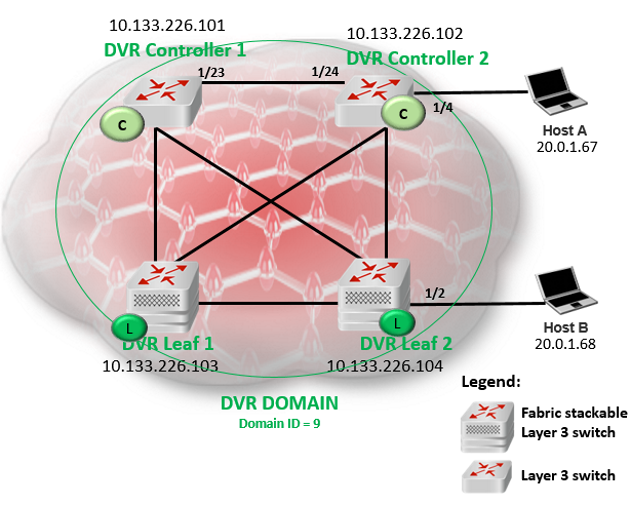

The following section describes a simple configuration example to configure Distributed Virtual Routing (DvR) over a Fabric Connect (SPB) network.

Click to expand in new window

About this task

In this example, you configure two DvR Controllers (with IP addresses 10.133.226.101 and 10.133.226.102) and two DvR Leaf nodes (with IP addresses 10.133.226.103 and 10.133.226.104), in a single DvR domain with domain ID 9. Hosts connect to the DvR nodes as shown in the figure.

Before you begin

On the switches to be configured as DvR Controllers:

  • Ensure that you configure Fabric Connect.

  • Ensure that you configure IP Shortcuts on the node. This is necessary for proper functioning of the node as a DvR Controller.

  • Verify that the dvr-leaf-mode boot flag is disabled on the node. To verify the setting, enter show boot config flags in Privileged EXEC mode.

On the switches to be configured as DvR Leaf nodes:

  • Ensure that you configure Fabric Connect.

Procedure

DvR Controller configuration — Controller 1 and Controller 2:

  1. Verify configuration of Fabric Connect on each of the switches to be configured as the DvR Controllers.

    The following examples show verification on one of the switches. Perform this verification on both switches.

    1. Verify the SPB configuration:
      Switch1:1>en
      Switch1:1#show spbm
                                        spbm : enable
                                   ethertype : 0x8100
                            nick-name server : enable
                        nick-name allocation : static
                      nick-name server range : B.00.00-B.FF.FF
      Switch1:1#show isis spbm

      ===========================================================================================
                                       ISIS SPBM Info
      ===========================================================================================
      SPBM       B-VID      PRIMARY    NICK     LSDB     IP       IPV6     MULTICAST  SPB-PIM-GW
      INSTANCE              VLAN       NAME     TRAP
      -------------------------------------------------------------------------------------------
      1          4051-4052  4051       0.10.01  disable  enable   disable  enable     disable

      ===========================================================================================
                                    ISIS SPBM SMLT Info
      ===========================================================================================
      SPBM       SMLT-SPLIT-BEB       SMLT-VIRTUAL-BMAC     SMLT-PEER-SYSTEM-ID
      INSTANCE
      -------------------------------------------------------------------------------------------
      1          primary              00:00:00:00:00:00


      --------------------------------------------------------------------------------
       Total Num of SPBM instances: 1
      --------------------------------------------------------------------------------


    2. Verify the global IS-IS configuration:
      Switch1:1#show isis

      ==============================================================================
                                     ISIS General Info
      ==============================================================================
                                  AdminState : enabled
                                  RouterType : Level 1
                                   System ID : 00bb.0000.0101
                        Max LSP Gen Interval : 900
                                      Metric : wide
                         Overload-on-startup : 20
                                    Overload : false
                               Csnp Interval : 10
                               PSNP Interval : 2
                           Rxmt LSP Interval : 5
                                   spf-delay : 100
                                 Router Name : Cont-1
                           ip source-address : 10.0.0.101
                         ipv6 source-address :
                    ip tunnel source-address :
                                  Tunnel vrf :
                               ip tunnel mtu :
                           Num of Interfaces : 4
                       Num of Area Addresses : 1
                         Inband Mgmt Clip IP :
                                    backbone : disabled
                    Dynamically Learned Area : 00.0000.0000
                                  FAN Member : No
  2. Configure the DvR Controllers.
    1. Configure Controller 1 (IP address 10.133.226.101) with DvR domain ID 9.
      Switch:1>en
      Switch:1#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      Switch:1(config)#dvr controller 9
      Switch:1(config)#show dvr

      ==================================================================
                          DVR Summary Info
      ==================================================================
      Domain ID                      : 9
      Domain ISID                    : 16678219
      Backbone ISID                  :
      Role                           : Controller
      My SYS ID                      : 00:bb:00:00:81:21
      Operational State              : Up
      GW MAC                         : 00:00:5e:00:01:25
      InjectDefaultRouteDisable(GRT) : Disabled

    2. Configure Controller 2 (IP address 10.133.226.102), also with DvR domain ID 9.
      Switch:1>en
      Switch:1#conf t
      Enter configuration commands, one per line.  End with CNTL/Z.
      Switch:1(config)#dvr controller 9
      Switch:1(config)#show dvr

      ==================================================================
                          DVR Summary Info
      ==================================================================
      Domain ID                      : 9
      Domain ISID                    : 16678219
      Backbone ISID                  : 16678216
      Role                           : Controller
      My SYS ID                      : 00:bb:00:00:81:21
      Operational State              : Up
      GW MAC                         : 00:00:5e:00:01:25
      InjectDefaultRouteDisable(GRT) : Disabled

    3. Verify the configuration. View the members of the DvR domain.
      Switch1:1#show dvr members

      ============================================================================================
                                                DVR Members (Domain ID: 2)
      ============================================================================================
      System Name                              Nick-Name        Nodal MAC              Role
      --------------------------------------------------------------------------------------------
      Cont-1                                   0.10.01          00:bb:00:00:01:01      Controller
      Cont-2                                   0.10.02          00:bb:00:00:01:02      Controller

      2 out of 2 Total Num of DVR Members displayed
      --------------------------------------------------------------------------------------------

Layer 2 VSN (VLAN) configuration on the DvR Controllers:

  1. Configure Layer 2 VSN on the DvR Controllers, Controller 1 and Controller 2.
    1. Configure platform VLANs on Controller 1 (VLAN ID=200 and VLAN ID=202). Associate the VLANs with the I-SIDs 20200 and 20202 respectively. Configure gateway IPv4 addresses 20.0.1.1 and 20.2.1.1 respectively, and enable DvR on those interfaces.
      Switch1:1(config)#vlan create 200 type port-mstprstp 0
      Switch1:1(config)#vlan i-sid 200 20200
      Switch1:1(config)#interface vlan 200
      Switch1:1(config)#dvr gw-ipv4 20.0.1.1
      Switch1:1(config)#dvr enable
      Switch1:1(config)#ip address 20.0.1.2 255.255.0.0

      Switch1:1(config)#vlan create 202 type port-mstprstp 0
      Switch1:1(config)#vlan i-sid 202 20202
      Switch1:1(config)#interface vlan 202
      Switch1:1(config)#dvr gw-ipv4 20.2.1.1
      Switch1:1(config)#dvr enable
      Switch1:1(config)#ip address 20.2.1.2 255.255.0.0
      Switch1:1(config)#exit
      Switch1:1#

    2. Configure the platform VLANs on Controller 2. Ensure that you configure the same gateway IPv4 addresses on the corresponding VLANs, as on Controller 1.
      Switch2:1(config)#vlan create 200 type port-mstprstp 0
      Switch2:1(config)#vlan i-sid 200 20200
      Switch2:1(config)#interface vlan 200
      Switch2:1(config)#dvr gw-ipv4 20.0.1.1
      Switch2:1(config)#dvr enable
      Switch2:1(config)#ip address 20.0.1.3 255.255.0.0

      Switch2:1(config)#vlan create 202 type port-mstprstp 0
      Switch2:1(config)#vlan i-sid 202 20202
      Switch2:1(config)#interface vlan 202
      Switch2:1(config)#dvr gw-ipv4 20.2.1.1
      Switch2:1(config)#dvr enable
      Switch2:1(config)#ip address 20.2.1.3 255.255.0.0
      Switch2:1(config)#exit
      Switch2:1#

    3. Verify Layer 2 VSN (VLAN) configuration on the Controllers. The following example shows the verification on Controller 1. Perform this verification on both Controllers.

      View the DvR interfaces.

      On Controllers, DvR interfaces are created when you configure IP on a DvR enabled Layer 2 VSN (VLAN, I-SID). You can also view the administrative state of these interfaces on the Controller.

      Switch1:1#show dvr interfaces

      ========================================================================================================================
                                                           DVR Interfaces
      ========================================================================================================================
                                                                                              Admin        SPBMC      IGMP
      Interface       Mask           L3ISID     VRFID    L2ISID     VLAN     GW IPv4          State        State      Version
      ------------------------------------------------------------------------------------------------------------------------
      20.0.1.2        255.255.0.0    0          0        20200      200      20.0.1.1         enable       disable    2
      20.2.1.2        255.255.0.0    0          0        20202      202      20.2.1.1         enable       disable    2

      2 out of 2 Total Num of DVR Interfaces displayed
      ------------------------------------------------------------------------------------------------------------------------


      View the DvR host entries learned locally on the S-UNI port.

      Switch1:1#show dvr host-entries

      =======================================================================================================
                                                               DVR Host-Entries
      =======================================================================================================
                       HOST                L3VSN      L2VSN                   DOMAIN
      IP-ADDRESS       MAC-ADDRESS         ISID       ISID       PORT         ID     TYPE         NEXT HOP
      -------------------------------------------------------------------------------------------------------
      20.0.1.2         b0:ad:aa:42:ed:04   0          20200      cpp          9      LOCAL        Cont-1
      20.2.1.2         b0:ad:aa:42:ed:04   0          20202      cpp          9      LOCAL        Cont-1
      2 out of 2 Total Num of DVR Host Entries displayed
      --------------------------------------------------------------------------------------------------------


      View the DvR database. All IP subnet routes configured on the Controller, for the DvR domain, are displayed.

      Switch1:1#show dvr database
      ===============================================================================================================================
                                                                 DVR DATABASE
      ===============================================================================================================================
                                      NEXT                       L3VSN     L2VSN     OUTGOING             SPB  PREFIX
      DEST            MASK            HOP                        ISID      ISID      INTERFACE            COST COST   AGE
      -------------------------------------------------------------------------------------------------------------------------------
      20.0.1.2        255.255.255.255 Cont-1                     0         20200     cpp                  10   1      1 day(s), 06:41:40
      20.2.1.2        255.255.255.255 Cont-1                     0         20202     cpp                  10   1      1 day(s), 06:41:40

      2 out of 2 Total Num of DVR Database entries displayed
      -------------------------------------------------------------------------------------------------------------------------------



      View the DvR routes for the subnets 20.0.0.0 and 20.2.0.0.

      Switch1:1#show dvr routes

      =====================================================================================================
                                                                  DVR Routes
      =====================================================================================================
                                           NEXT               L3VSN         L2VSN
      DEST            MASK                 HOP                ISID          ISID        TYPE      COST
      ------------------------------------------------------------------------------------------------------
      20.0.0.0        255.255.0.0          Cont-1             0             20200       -         1
      20.2.0.0        255.255.0.0          Cont-1             0             20202       -         1

      2 out of 2 Total Num of DVR Routes displayed
      -------------------------------------------------------------------------------------------------------
      TYPE Legend: E=Ecmp Route


Layer 3 configuration on the DvR Controllers

  1. Configure Layer 3 (VRF) on the DvR Controllers, Controller 1 and Controller 2.
    1. Configure Layer 3 on Controller 1. As part of this configuration, you configure a VRF vrf501 and associate it with a DvR VLAN.
      Switch1:1(config)#ip vrf vrf501 vrfid 501
      Switch1:1(config)#vlan create 501 type port-mstprstp 0
      Switch1:1(config)#vlan i-sid 501 50501
      Switch1:1(config)#interface Vlan 501
      Switch1:1(config)#vrf vrf501
      Switch1:1(config)#dvr gw-ipv4 50.1.1.1
      Switch1:1(config)#dvr enable
      Switch1:1(config)#ip address 50.1.1.2 255.255.0.0

      Switch1:1(config)#router vrf vrf501
      Switch1:1(router-vrf)#i-sid 55501
      Switch1:1(router-vrf)#ipvpn enable
      Switch1:1(router-vrf)#exit
      Switch1:1(config)#
    2. Configure Layer 3 on Controller 2.
      Switch2:1(config)#ip vrf vrf501 vrfid 501
      Switch2:1(config)#vlan create 501 type port-mstprstp 0
      Switch2:1(config)#vlan i-sid 501 50501
      Switch2:1(config)#interface Vlan 501
      Switch2:1(config)#vrf vrf501
      Switch2:1(config)#dvr gw-ipv4 50.1.1.1
      Switch2:1(config)#dvr enable
      Switch2:1(config)#ip address 50.1.1.3 255.255.0.0

      Switch2:1(config)#router vrf vrf501
      Switch2:1(router-vrf)#i-sid 55501
      Switch2:1(router-vrf)#ipvpn enable
      Switch2:1(router-vrf)#exit
      Switch2:1(config)#
    3. Verify Layer 3 configuration. The following example shows verification on Controller 1. Perform this verification on both Controllers.

      View the DvR host entries.

      Switch2:1(config)#show dvr host-entries l3isid 55501

      =======================================================================================================
                                                               DVR Host-Entries
      =======================================================================================================
                       HOST                L3VSN      L2VSN                  DOMAIN
      IP-ADDRESS       MAC-ADDRESS         ISID       ISID       PORT        ID     TYPE         NEXT HOP
      -------------------------------------------------------------------------------------------------------
      50.1.1.2         b0:ad:aa:42:ed:08   55501      50501      cpp         9      LOCAL        Cont-1
      50.1.1.3         b0:ad:aa:4c:3d:02   55501      50501      1/23        9      DYNAMIC      Cont-2

      2 out of 3267 Total Num of DVR Host Entries displayed
      -------------------------------------------------------------------------------------------------------


      View the DvR interfaces.

      Switch2:1(config)#show dvr interfaces l3isid 55501

      ========================================================================================================================
                                                           DVR Interfaces
      ========================================================================================================================
                                                                                              Admin        SPBMC      IGMP
      Interface       Mask           L3ISID     VRFID    L2ISID     VLAN     GW IPv4          State        State      Version
      ------------------------------------------------------------------------------------------------------------------------
      50.1.1.2        255.255.0.0    55501      501      50501      501      50.1.1.1         enable       disable    2

      1 out of 291 Total Num of DVR Interfaces displayed
      Switch2:1(config)#show dvr database l3isid 55501

      =====================================================================================================================
                                                                 DVR DATABASE
      =====================================================================================================================
                                      NEXT          L3VSN     L2VSN     OUTGOING             SPB  PREFIX
      DEST            MASK            HOP           ISID      ISID      INTERFACE            COST COST   AGE
      ---------------------------------------------------------------------------------------------------------------------
      50.1.0.0        255.255.0.0     Cont-1        55501     50501     cpp                  10   1      0 day(s), 01:26:49
      50.1.1.2        255.255.255.255 Cont-1        55501     50501     cpp                  10   1      0 day(s), 01:26:49
      50.1.1.3        255.255.255.255 Cont-2        55501     50501     1/23                 10   1      0 day(s), 01:24:53

      3 out of 3558 Total Num of DVR Database entries displayed
      ----------------------------------------------------------------------------------------------------------------------


DvR Leaf configuration — Leaf 1 and Leaf 2

  1. Configure the boot flag dvr-leaf-mode on the switches to be configured as DvR Leaf nodes.
    Caution

    Caution

    Ensure that you save the current configuration on the switch, before you enable the flag.

    Enabling the flag removes all existing non-DvR configuration on the switch, such as platform VLANs and their IP address configuration, CLIP configuration, routing protocol configuration and VRF configuration. The gateway IPv4 address, if configured, is also removed.

    On switch with IP address 10.133.226.104, configure the boot flag and reboot the switch.

    Switch3:1>en
    Switch3:1#conf t
    Enter configuration commands, one per line.  End with CNTL/Z.
    Switch3:1(config)#boot config flags dvr-leaf-mode
    Switch3:1(config)#save config
    Switch3:1(config)#reset

    On switch with IP address 10.133.226.105, configure the boot flag and reboot the switch.

    Switch4:1>en
    Switch4:1#conf t
    Enter configuration commands, one per line.  End with CNTL/Z.
    Switch4:1(config)#boot config flags dvr-leaf-mode
    Switch4:1(config)#save config
    Switch4:1(config)#reset
  2. After the switches come back up, configure the nodes as DvR Leaf nodes.

    Configure switch with IP address 10.133.226.104 as DvR Leaf 1; verify the configuration.

    Switch3:1(config)#dvr Leaf 9
    Switch3:1(config)#show dvr

    =========================================================================
                                         DVR Summary Info
    =========================================================================
    Domain ID                      : 9
    Domain ISID                    : 16678219
    Role                           : Leaf
    My SYS ID                      : 00:bb:00:00:80:05
    Operational State              : Up
    GW MAC                         : 00:00:5e:00:01:25
    Inband Mgmt Clip IP            :
    Virtual Ist local address      :
    Virtual Ist local subnet mask  :
    Virtual Ist peer address       :
    Virtual Ist cluster-id         :
    Virtual Ist ISID               :


    Configure switch with IP address 10.133.226.105 as DvR Leaf 2; verify the configuration.

    Switch4:1(config)#dvr Leaf 9
    Switch4:1(config)#show dvr

    =========================================================================
                                         DVR Summary Info
    =========================================================================
    Domain ID                      : 9
    Domain ISID                    : 16678219
    Role                           : Leaf
    My SYS ID                      : 00:bb:00:00:80:05
    Operational State              : Up
    GW MAC                         : 00:00:5e:00:01:25
    Inband Mgmt Clip IP            :
    Virtual Ist local address      :
    Virtual Ist local subnet mask  :
    Virtual Ist peer address       :
    Virtual Ist cluster-id         :
    Virtual Ist ISID               :

  3. Associate the I-SIDs on the DvR Leaf nodes to the DvR VLANs configured on the Controller.

    On Leaf node 1 (IP address 10.133.226.105):

    Switch3:1(config)#i-sid 20200 elan
    Switch3:1(elan:20200)#c-vid 200 port 1/2
    Switch3:1(config)#exit


    View the host connections.

    Switch3:1#show dvr host-entries nh-as-mac

    ==============================================================================================================
                                                             DVR Host-Entries
    ==============================================================================================================
                     HOST                L3VSN      L2VSN                  DOMAIN
    IP-ADDRESS       MAC-ADDRESS         ISID       ISID       PORT        ID     TYPE         NEXT HOP
    --------------------------------------------------------------------------------------------------------------
    20.0.1.67        00:00:00:00:00:67   0          20200      1/4          9      DYNAMIC      00:bb:00:00:81:21
    20.0.1.68        00:00:00:00:00:68   0          20200      1/2          9      DYNAMIC      00:bb:00:00:81:21
    2 out of 2 Total Num of DVR Host Entries displayed
    --------------------------------------------------------------------------------------------------------------


    On Leaf node 2 (IP address 10.133.226.105):

    Switch4:1(config)#i-sid 20200 elan
    Switch4:1(elan:20200)#c-vid 200 port 1/2
    Switch4:1(config)#exit


    View the host connections.

    Switch4:1#show dvr host-entries nh-as-mac

    ==============================================================================================================
                                                             DVR Host-Entries
    ==============================================================================================================
                     HOST                L3VSN      L2VSN                  DOMAIN
    IP-ADDRESS       MAC-ADDRESS         ISID       ISID       PORT        ID     TYPE         NEXT HOP
    --------------------------------------------------------------------------------------------------------------
    20.0.1.67        00:00:00:00:00:67   0          20200      1/4          9      DYNAMIC      00:bb:00:00:81:21
    20.0.1.68        00:00:00:00:00:68   0          20200      1/2          9      DYNAMIC      00:bb:00:00:81:21
    2 out of 2 Total Num of DVR Host Entries displayed
    --------------------------------------------------------------------------------------------------------------

  4. View all members of the DvR domain. You can view this information on either a Leaf node or a Controller node.
    Switch1:1#show dvr members

    ================================================================================================
                                              DVR Members (Domain ID: 2)
    ================================================================================================
    System Name                              Nick-Name        Nodal MAC                 Role
    ------------------------------------------------------------------------------------------------
    Cont-1                                   0.10.01          00:bb:00:00:01:01         Controller
    Cont-2                                   0.10.02          00:bb:00:00:01:02         Controller
    Leaf1                                    0.10.04          00:bb:00:00:80:04         Leaf
    Leaf2                                    0.10.05          00:bb:00:00:80:05         Leaf

    4 out of 4 Total Num of DVR Members displayed
    -------------------------------------------------------------------------------------------------
