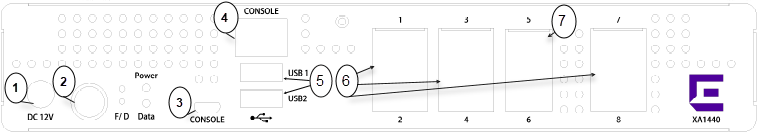

The following figure illustrates the components on the rear panel of the XA1440 and XA1480. Slot 1 is used for all of the ports.
|
1 = DC power adapter input |
3 = Micro USB console port |
5 = USB Type A ports |
7 = 10G SFP+ Ethernet ports |
|
2 = Power button |
4 = RJ45 Console port |
6 = 10/100/1000BASE-T Ethernet ports |
The rear panel components of XA1400 Series switches include:
Power button
6 RJ45 10/100/1000BASE-T Ethernet ports.
2 10-gigabit Ethernet ports capable of supporting active fiber SFP+. For information about SFP+ optical modules, see the Extreme Networks Pluggable Transceivers Installation Guide.
RJ45 console port used to connect a terminal and perform local management.
2 USB ports for access to external storage.
1 MicroUSB console port used to connect a terminal and perform local management..
