To manually set the AP's mode of operation using its GUI:
Access the
AP's GUI through a Web browser
(http://<AP-IP-ADDRESS>).
Point the
Web browser to the AP's Primary or Secondary (ZEROCONF) IP
address.
Primary IP
address - This is the DHCP provided IP address.
Secondary
IP address - This is the ZEROCONF IP address '169.254.
xx.yy'. Where, 'xx' and 'yy' are the last two octets of the AP's MAC
address in decimal format. Note, the AP's MAC address will
be printed on the box.
For example:
If AP's MAC
address is: 00:C0:23:00:F0:0A
The secondary IP address will
be: 169.254.240.10

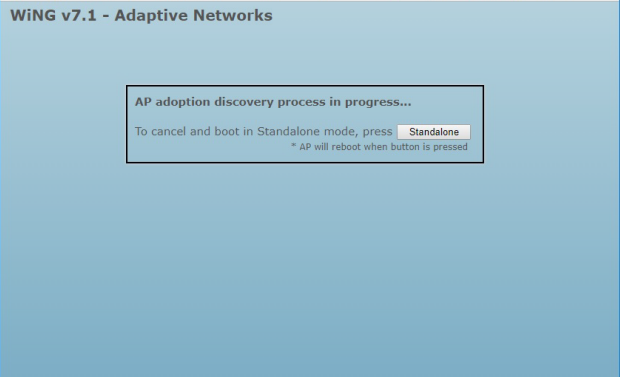

You
will be presented with the following screen:
Click the
Standalone button to move into the Standalone/WiNG mode.

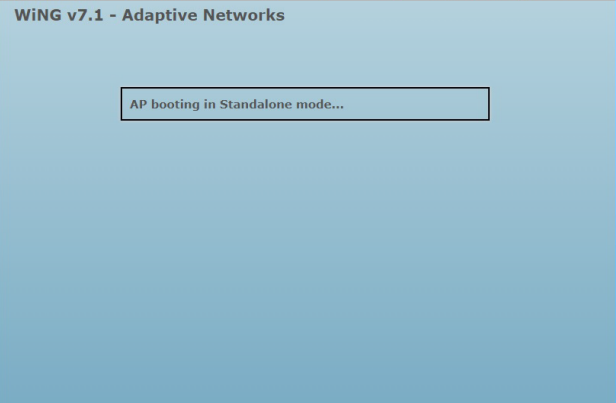

The
following screen displays:
After the AP
has rebooted, use the following default credentials to
login:
